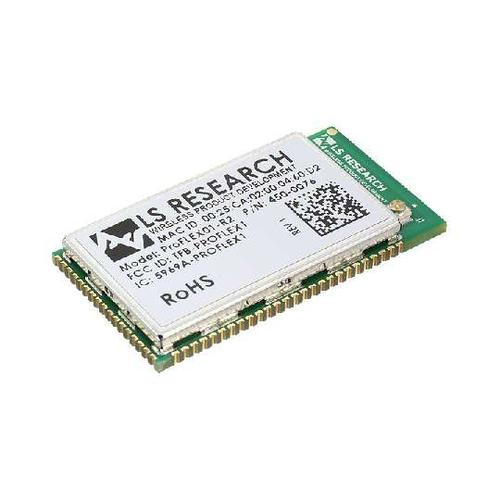

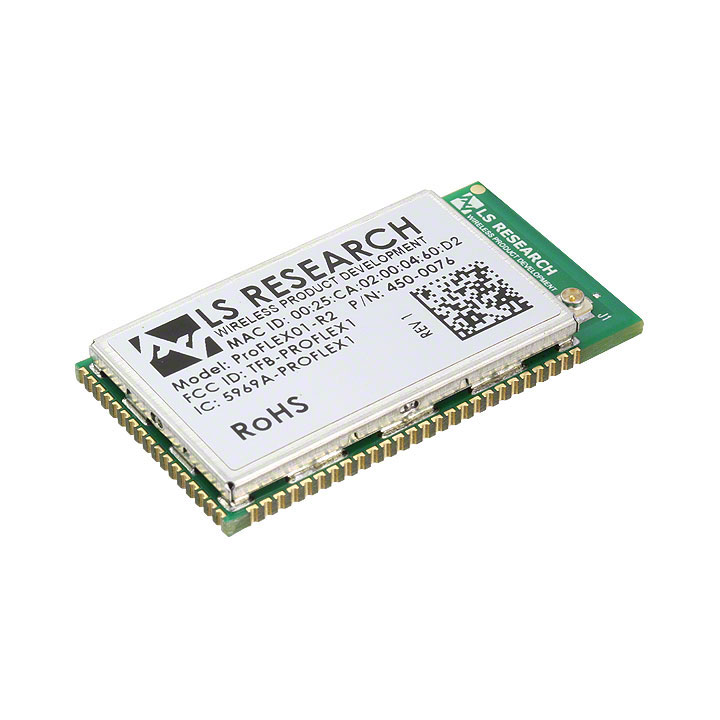

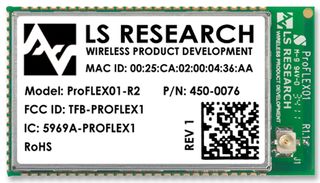

LS RESEARCH 450-0076 模块, PROFLEX01-R2, ZIGBEE, 2.4GHZ, UFL
The ProFLEX01-R2 module is a high performance 2.4GHz IEEE 802.15.4 radio CC2520 & CC2591 and microcontroller MSP430F5437A in a cost effective, precertified footprint. The module comes preloaded with the TI MAC-Stack that can be used with the LSR host serial interface. Full debug and programming capabilities are included to develop custom applications.
频率 2.4 GHz
RAM大小 16 KB
数据速率 250 kbps
FLASH内存容量 256 KB
输出功率Max 100 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.3 VDC
电源电压Min 2 VDC
安装方式 Surface Mount
引脚数 69
封装 SMD
高度 5.08 mm
封装 SMD
产品生命周期 Active
包装方式 Tray
制造应用 通信与网络, Lighting, Communications & Networking, 安全, 照明, Security
RoHS标准 RoHS Compliant
含铅标准 Lead Free
