45719-0008

12.90毫米（ 0.508 “ ）间距极端的PowerEdge ，连接器， 3段（ 6共计联系人） 12.90mm .508" Pitch EXTreme PowerEdge, Connector, 3 Segments 6 Total Contacts

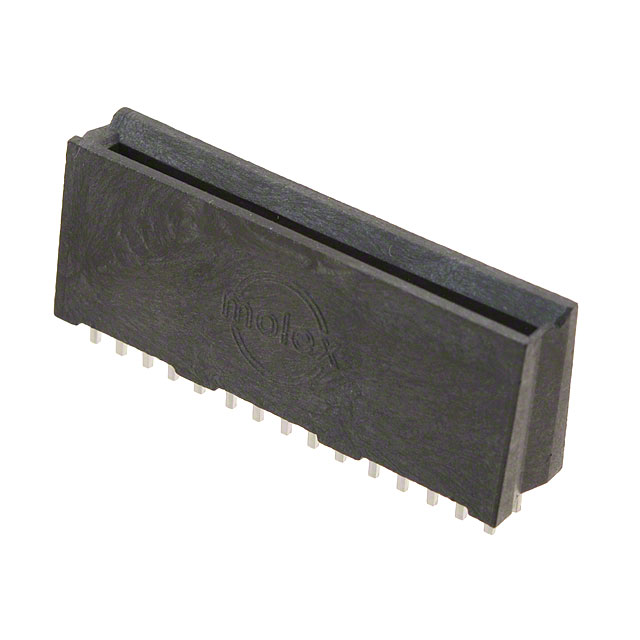

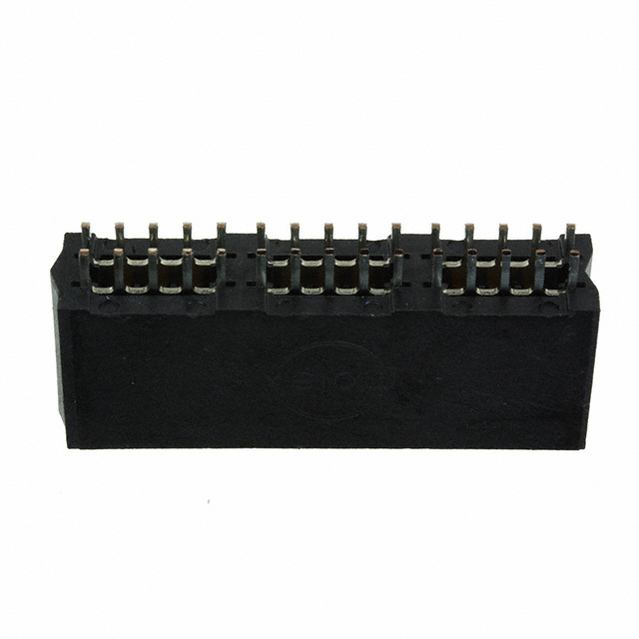

Eliminate the need for male connectors with this power card edge 457190008 smart card connector from . This SKT connector"s 6 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. It has a straight body orientation. It has a maximum voltage rating of 250 V. This product is 15 mm tall. This device has a maximum current rating of 40 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. 457190008 is housed in black liquid crystal polymer. This card edge connector has an operating temperature of -40 to 105 °C.
