4184NGX

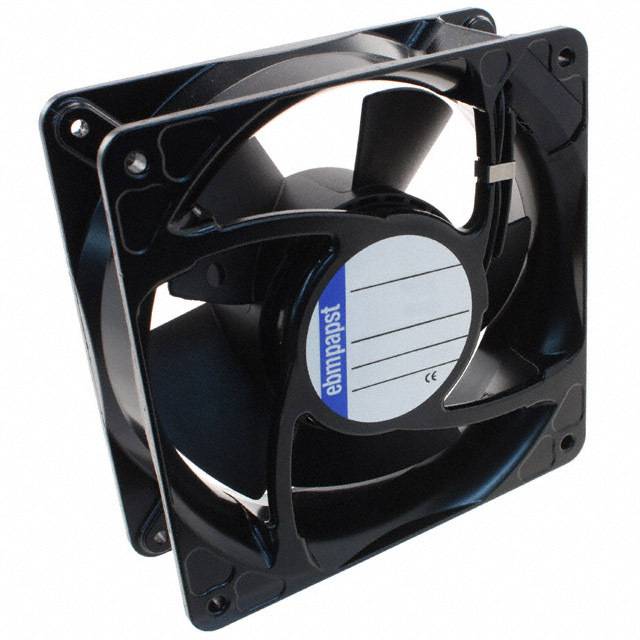

EBM PAPST  4184NGX  轴流风扇, 管轴式, 方形, 端子连接, 管套, 4100N系列, 24 VDC, 119 mm, 38 mm, 94.2 cu.ft/min, 160 m³/h

The is a 24VDC standard or basic speed Axial Fan with speed signal, Sintec sleeve bearing and terminal power connection. Die-cast aluminium housing and fibreglass-reinforced plastic PA impeller. Clockwise direction of rotation looking at rotor, inlet over bars direction of air flow, flat plugs 2.8 x 0.5mm connection with mounting bore hole of 3.7mm. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

2800RPM Speed rating

.

3.6W Rated power

.

-20 to 75°C Maximum ambient temperature range

.

Protected against reverse polarity and locking
