42801-2概述

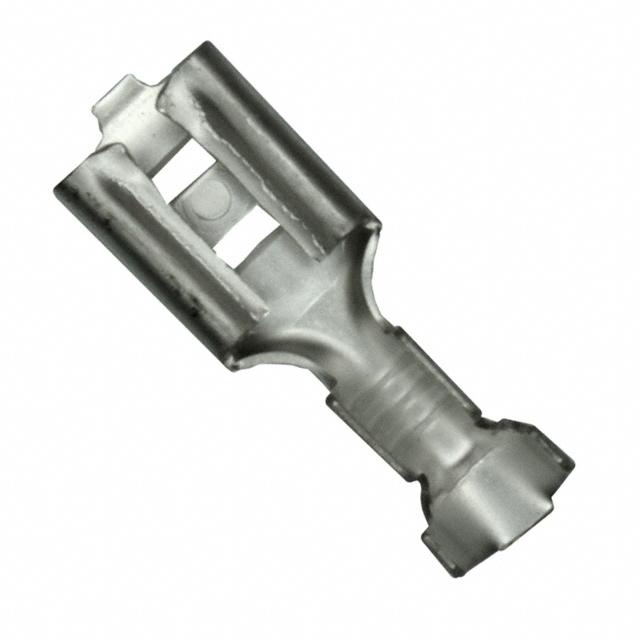

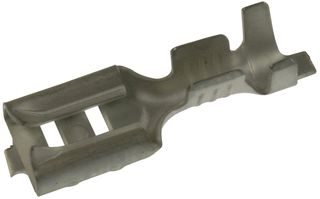

AMP - TE CONNECTIVITY 42801-2 Quick Disconnect Terminal, FASTON 187 Series, 20AWG, 16AWG, 1.3mm², Female Quick Disconnect

Create a connection between two terminal blocks by using this quick disconnect terminal wire terminal from . It has a receptacle type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 16-20 AWG. This product is 14.99 mm long and 5.61 mm.

42801-2中文资料参数规格
技术参数

极性 Female

线规 16AWG ~ 20AWG

触点电镀 Tin

方向 Straight

封装参数

安装方式 Quick Connect

外形尺寸

长度 14.99 mm

物理参数

颜色 Blue

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买42801-2
型号: 42801-2
描述:AMP - TE CONNECTIVITY 42801-2 Quick Disconnect Terminal, FASTON 187 Series, 20AWG, 16AWG, 1.3mm², Female Quick Disconnect
