49-59111

ITW SWITCHES  49-59111  按钮开关, SPST-常开, 关-开, 125 V, 50 V, 400 mA, 带引线

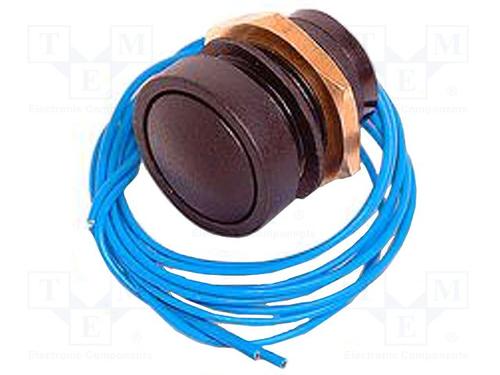

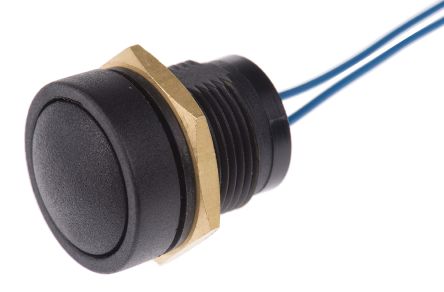

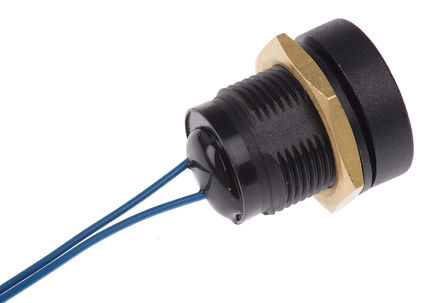

The is a momentary action Pushbutton Switch which fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads 500mm length along with a panel sealed IP67 version which is terminated by a series 16 micro switch. Held in position by a snap fit retaining mechanism, the micro switch has a maximum current rating of 10A and the advantage of SPDT-DB contacts to cover all circuit requirements. Being double break, the contacts also provide reliable switching of DC loads. The body and button are made from PBT, a hard wearing thermoplastic polyester that is suitable for surface or sublimation printing or engraving.

.

1GR at 500VDC Insulation resistance

.

Gold-plated palladium nickel contacts

.

Round bezel button style

.

500mm Leads termination/body style

.

Black button colour

.

Up to +105°C Wide temperature

.

Flame-retardant UL rated material

.

Gold contacts on microswitch versions

.

Operating force of 3N
