450-0016概述
802.15.4 LR-WPAN 924MHz 1000Kbps 69Pin SMD

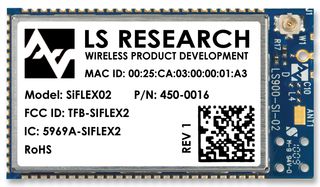

The SiFLEX02 module is a high performance 900MHz IEEE 802.15.4 radio and microcontroller in a cost effective, pre-certified footprint. The module comes preloaded with the LSR host serial interface running on top of the Atmel 802.15.4 MAC. Full debug and programming capabilities are included to develop custom applications. Easily load the ZigBee stack or 802.15.4 MAC onto the module and create your own network.
- .
- 2 miles range
- .
- Up to 1Mbps RF data rate
- .
- LSR serial interface based on 802.15.4 MAC
- .
- Low power operation
- .
- U.FL connector for external antenna
450-0016中文资料参数规格
技术参数
频率 900 MHz
RAM大小 16 KB
数据速率 1.00 Mbps
FLASH内存容量 256 KB
输出功率 24 dBm
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.45V
封装参数
安装方式 Through Hole
引脚数 69
封装 SMD
外形尺寸
高度 5.08 mm
封装 SMD
物理参数
工作温度 -40℃ ~ 85℃
其他
产品生命周期 Obsolete
包装方式 Tray
制造应用 Wireless, LED Lighting, Medical, Communications & Networking
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
