445C25D24M00000参数规格_中文资料_数据手册PDF

445C25D24M00000概述

Crystal 24MHz 20ppm Tol 50ppm Stability 18pF FUND 40Ω 2Pin SMD T/R

Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

立创商城:
24MHz ±20ppm 18pF

得捷:
CRYSTAL 24.0000MHZ 18PF SMD

贸泽:
Crystals 24MHz +/-20ppm 18pF -20C +70C

艾睿:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

Chip1Stop:
Crystal 24MHz ﾂｱ20ppm Tol ﾂｱ50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

Verical:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

Online Components:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

Electro Sonic:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm Automotive 2-Pin SMD T/R

445C25D24M00000中文资料参数规格

技术参数

频率 24 MHz

频率稳定度 ±50 ppm

频率容差 ±20 ppm

等效串联电阻ESR 40 Ω

负载电容 18 pF

工作温度Max 70 ℃

工作温度Min 20 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD-2

外形尺寸

长度 5 mm

宽度 3.2 mm

高度 1.35 mm

封装 SMD-2

物理参数

工作温度 -20℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

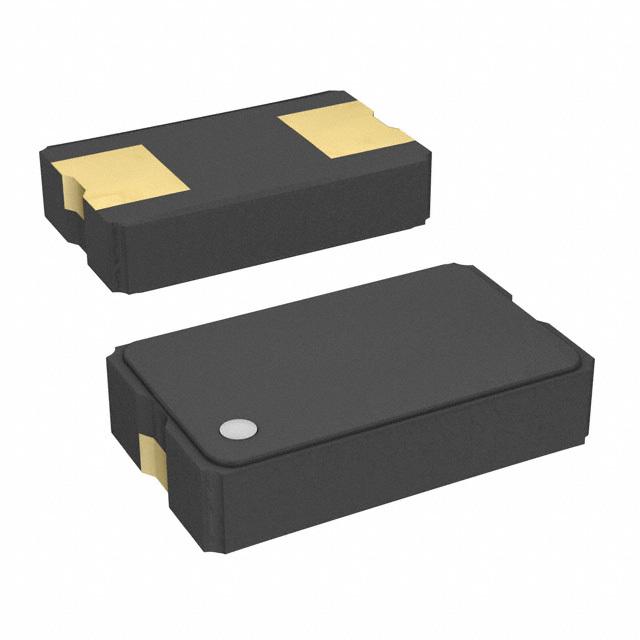

445C25D24M00000引脚图与封装图

在线购买445C25D24M00000

型号： 445C25D24M00000

制造商： CTS 西迪斯

描述：Crystal 24MHz 20ppm Tol 50ppm Stability 18pF FUND 40Ω 2Pin SMD T/R
