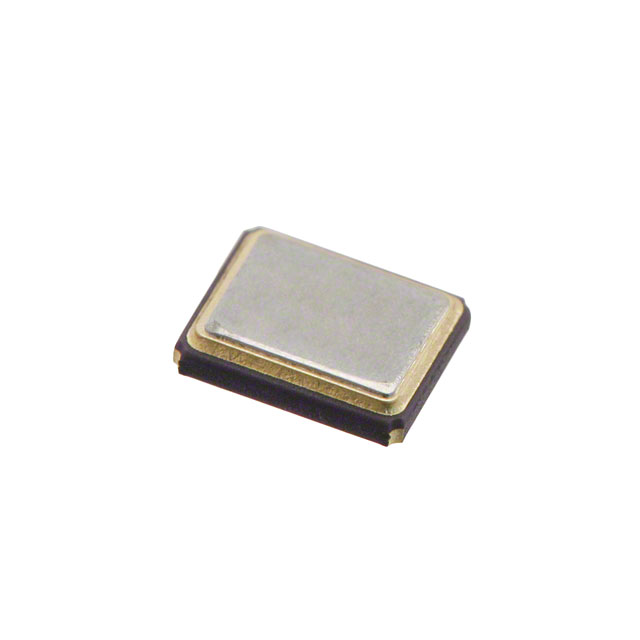

Crystal 20MHz ±30ppm Tol ±50ppm Stability 18pF FUND 60Ω 4Pin SMD T/R
20 MHz ±30ppm 晶体 18pF 4-SMD，无引线
得捷:
CRYSTAL 20.0000MHZ 18PF SMD
艾睿:
Crystal 20MHz ±30ppm Tol ±50ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Chip1Stop:
Crystal 20MHz ﾂｱ30ppm Tol ﾂｱ50ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Verical:
Crystal 20MHz ±30ppm Tol ±50ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Online Components:
Crystal 20MHz ±30ppm Tol ±50ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
Electro Sonic:
Crystal 20MHz ±30ppm Tol ±50ppm Stability 18pF FUND 60Ohm 4-Pin SMD T/R
频率 20 MHz
频率稳定度 ±50 ppm
频率容差 ±30 ppm
等效串联电阻ESR 60 Ω
负载电容 18 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount

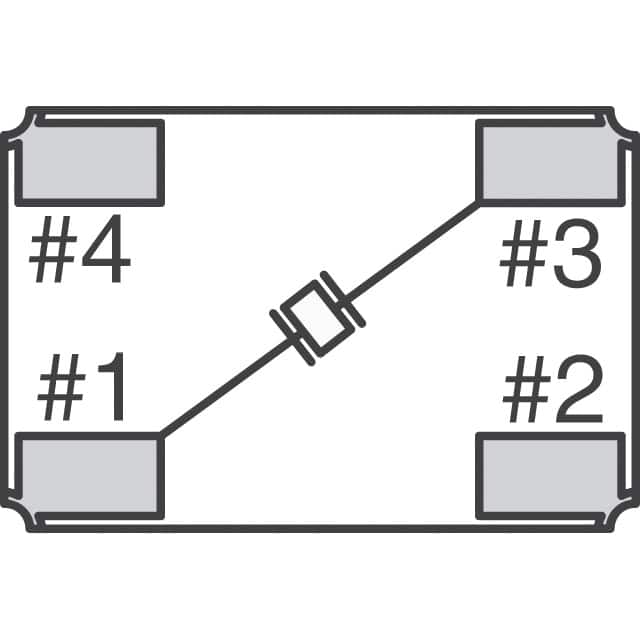

引脚数 4
封装 SMD-4
长度 3.2 mm
宽度 2.5 mm
高度 0.8 mm
封装 SMD-4
工作温度 -40℃ ~ 85℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541600050
