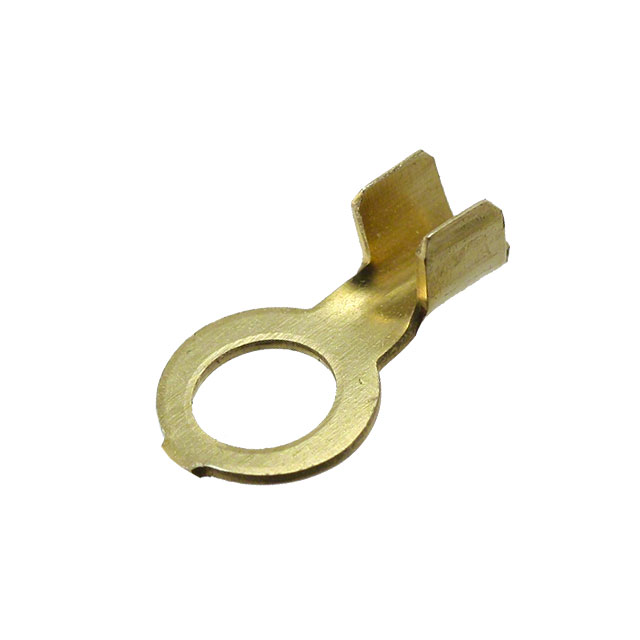

40951图片12
40951概述

Ring Tongue Terminal 14-18AWG 11.56mm 7.14mm Automotive Strip

RING 18-14 AWG .0198 X .343 BR


得捷:
CONN RING OVAL 14-18AWG #8 CRIMP


贸泽:
Terminals RING 14-18 AWG #8 50000


艾睿:
A great way to make a solid connection with terminal blocks is to use this ring tongue terminal 40951 wire terminal from TE Connectivity in your design. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 11.56 mm long and 7.14 mm. Its wire is 14-18 AWG.


安富利:
Ring Tongue Terminal 14-18AWG Strip


Verical:
Ring Tongue Terminal 14-18AWG Brass 11.56mm Reel/Strip Automotive


MASTER:
ring


Powell:
Ring and Spade Tongue Terminals


Online Components:
RING 18-14 AWG .0198 X .343 BR


Electro Sonic:
RING 18-14 AWG .0198 X .343 BR


40951中文资料参数规格
技术参数

线规 14AWG ~ 18AWG

方向 Straight

端接类型 Ring Lug, Ring

外形尺寸

长度 11.56 mm

宽度 7.14 mm

厚度 0.51 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买40951
型号: 40951
描述:Ring Tongue Terminal 14-18AWG 11.56mm 7.14mm Automotive Strip
