41581概述

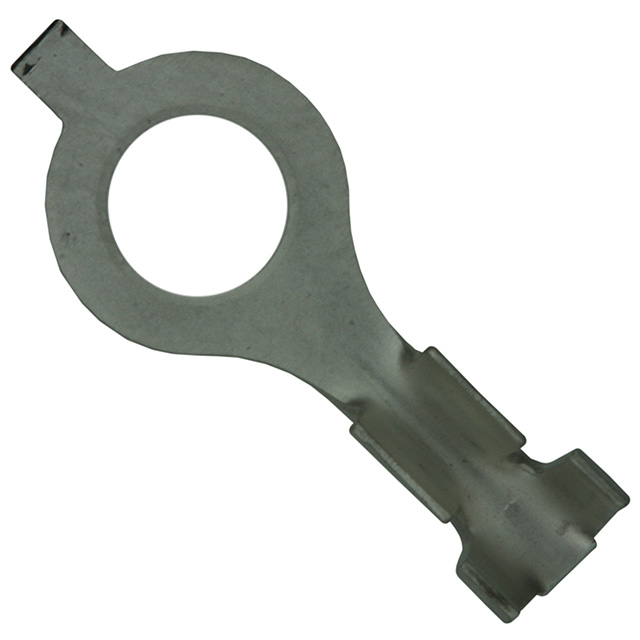

Ring Tongue Terminal 20-24AWG 16mm 7.36mm Tin Strip

RT .171 DIA TERMINAL 24-20 AWG TPBR


得捷:
CONN RING CIRC 20-24AWG #8 CRIMP


艾睿:
Using the ring tongue terminal 41581 wire terminal from TE Connectivity is the easiest way to connect to your terminal blocks. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 16 mm long and 7.36 mm. Its wire is 20-24 AWG.


安富利:
Ring Tongue Terminal 20-24AWG 16mm 7.36mm Tin Strip


Verical:
Ring Tongue Terminal 20-24AWG Brass 16mm Tin Reel/Strip Automotive


MASTER:
RING TONGUE


Powell:
Ring and Spade Tongue Terminals


AMEYA360:
CONN RING 20-24AWG #8 TIN CRIMP


Electro Sonic:
RT .171 DIA TERMINAL 24-20 AWG TPBR


41581中文资料参数规格
技术参数

线规 20AWG ~ 24AWG

方向 Straight

端接类型 Ring Lug

外形尺寸

长度 16.00 mm

宽度 7.37 mm

厚度 0.51 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买41581
型号: 41581
描述:Ring Tongue Terminal 20-24AWG 16mm 7.36mm Tin Strip
