450-0089

LS RESEARCH  450-0089  电路板, TIWI-SL CC3000评估模块, 片式天线

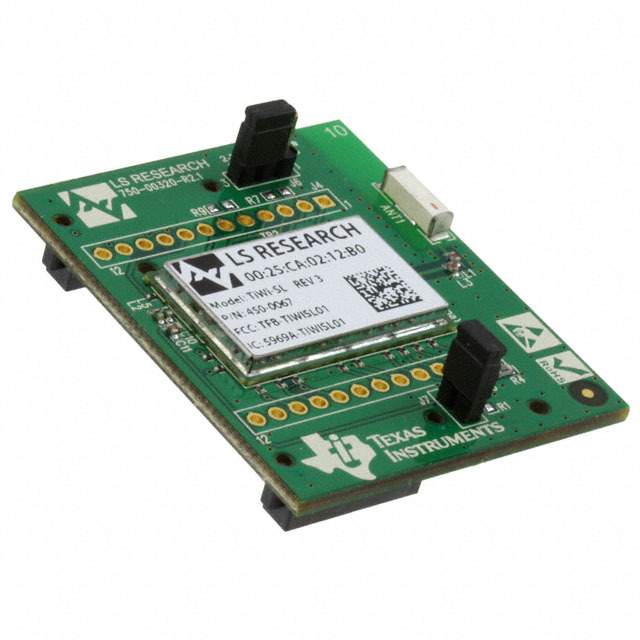

The TiWi-SL EM "Evaluation Module" Board is an evaluation platform for the TiWi-SL 802.11 b/g Wi-Fi module. Communication between the TiWi-SL module, which is a slave, and the host device is through an SPI interface. The TiWi-SL EM Board contains an on board chip antenna, and is intended for evaluation purposes when used in conjunction with the Texas Instruments MSPEXP430FR5739 Experimenter Board. The TiWi-SL EM Board contains an on board chip antenna which is modular certified for FCC 15.247 and IC RSS-210, as well as compliant to the RF requirements for ETSIEN 300 328 and ETSI EN 301 489.

.

On board chip antenna

.

Adaptable to work with microcontroller platforms that do not have support for the EM connectors.

.

SPI interface
