Res Thick Film NET 220KΩ 2% 0.75W3/4W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk
is manufactured by Bourns and is categorized in the Resistor Networks, Arrays category. 4606X-101-224 is described as RES ARRAY 5 RES 220K OHM 6SIP. Perfect Parts is a supplier of Resistors and other Passives.
得捷:
RES ARRAY 5 RES 220K OHM 6SIP
贸泽:
Resistor Networks & Arrays 6Pin 2% 220K Bussed
艾睿:
Res Thick Film NET 220K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 220K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
针脚数 6
电阻 220 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 6
封装 SIP-6

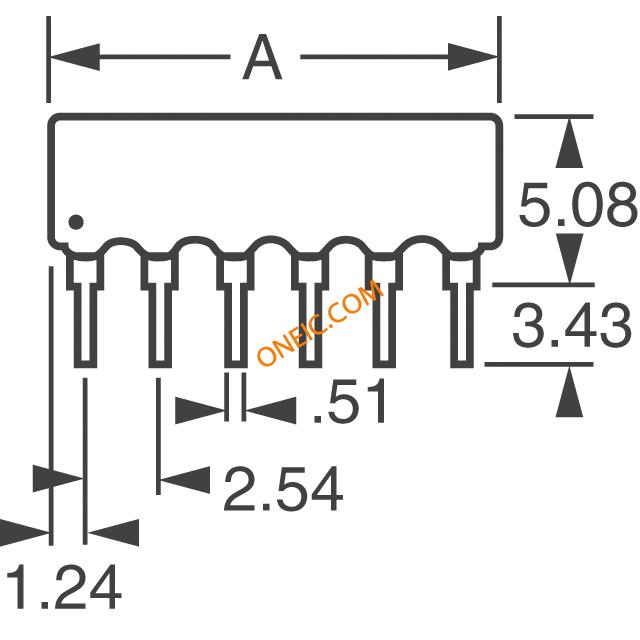

长度 12.65 mm

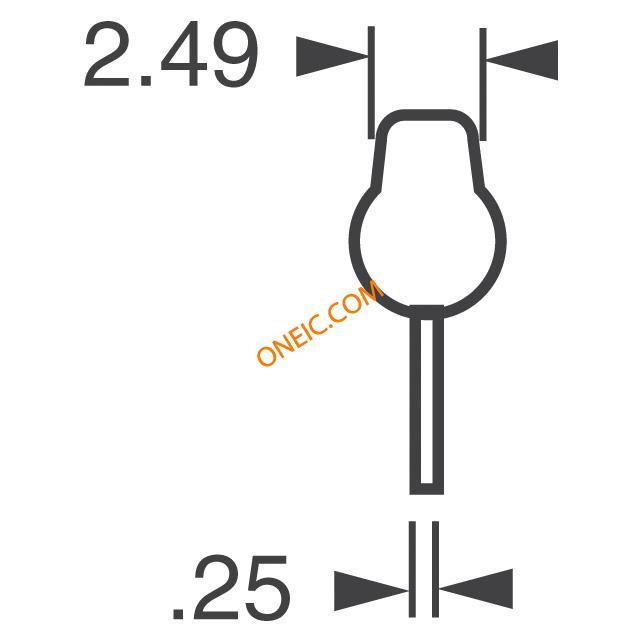

宽度 2.49 mm
高度 5.08 mm
封装 SIP-6
厚度 2.49 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Obsolete
包装方式 Bulk
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
