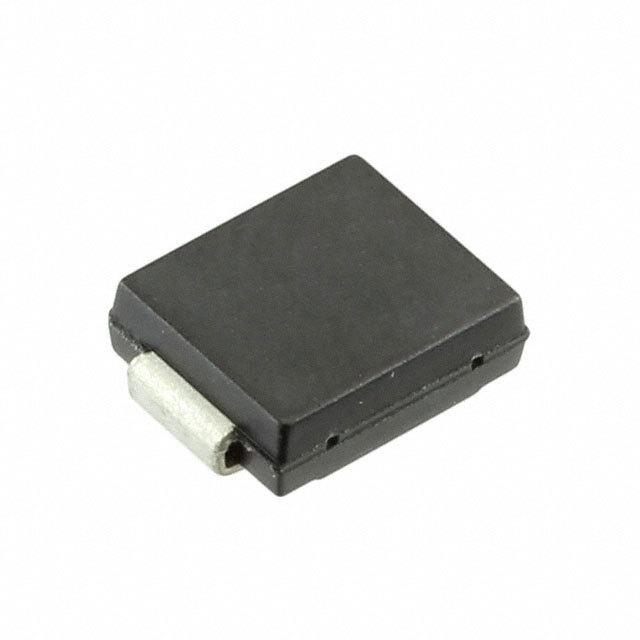

TVS二极管, 单向, 24 V, 51 V, DO-214AB, 2 引脚
If you"re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this TVS diode from is perfect for you. This device"s maximum clamping voltage is 51 V and minimum breakdown voltage is 26.7 V. Its peak pulse power dissipation is 4000 W. Its maximum leakage current is 2 μA. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
针脚数 2
钳位电压 51 V
最大反向电压（Vrrm） 24V
测试电流 1 mA
最大反向击穿电压 29.5 V
脉冲峰值功率 4000 W
最小反向击穿电压 26.7 V
击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 6.6 mm
宽度 5.59 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
