4752.3000概述

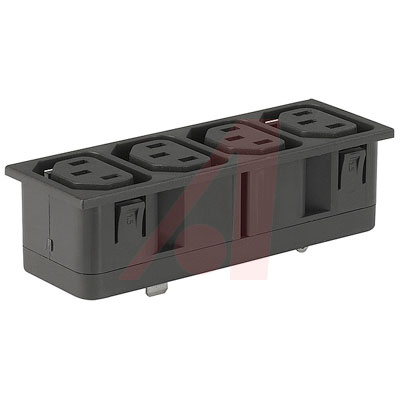

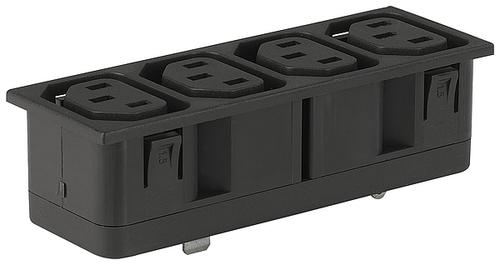

SCHURTER 4752.3000 电源连接器, IEC电源插座, 4路
The is a Strip Block for snap-in mounting with 4 IEC appliance outlets F. It is made of UL94V-0 rated black thermoplastic housing. The front side snap-in strip block has 4 x 0.8mm solder and 6.3 x 0.8mm quick-connect terminals. It is suitable for use in equipment according to IEC/UL 60950 and appliances with protection class I according to IEC 61140.
- .
- Busbar is of single piece no soldering
- .
- Insulation cover on the rear-side
- .
- 1mm Panel thickness
4752.3000中文资料参数规格
技术参数
触点数 12
极性 Female
额定电压AC 250 V
额定电流 15 A
输出接口数 4
易燃性等级 UL 94 V-0
额定电流Max 15 A
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压Max 250 VAC
电源电压AC 250 V
封装参数
安装方式 Panel
外形尺寸
宽度 35 mm
高度 25.2 mm
物理参数
颜色 Black
工作温度 -25℃ ~ 70℃
其他
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Consumer Electronics, 电源管理, 消费电子产品
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
