4550-10

TORCOFIX K 可调扭矩扳手 可调棘齿扭矩扳手，带放大扭矩设置窗口，用于减少错误。 释放系统，带有音频信号 双刻度：Nm 和 lbf.ft 附加千分尺刻度 杠杆断开机制 方形驱动系统 ±3% 精确度 人机工程学软把手设计 管状钢结构，带缎光镀铬表面 标准 DIN EN ISO 6789：2003 类型 11、A 类。 随附 工厂检查校准证书。 扳手 - 快速设置，可调节，带指示器

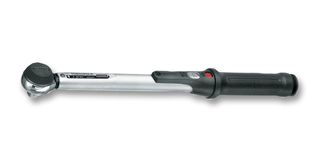

The is a Torque Wrench used in controlled screw tightening in the most widely used range of 10 to 100Nm and also suitable for use in all areas of industrial manufacturing. It offers 1/2-inch interchangeable mushroom head-square drive with ball-locking mechanism as per DIN 3120-A 6.3, A 10 or A 12.5 and ISO 1174. It has robust silk-matt chrome-plated steel tube construction with chrome-plated ratchet head and glass-fibre-reinforced plastic parts.

.

Adjustable torque wrench with a square drive and an integrated ratchet-head function

.

For controlled bi-directional tightening

.

In accordance with DIN EN ISO 6789, traceable to national norms

.

Lever-breaking mechanism with a castor guarantee tactile impulse and audible actuation signals

.

Double scale Nm and lbf-ft below a window with a magnifying glass effect

.

Ergonomically shaped convenient black plastic handgrip

.

Indentation in the middle of the handgrip as a calibration aid

.

±3% Tolerance of the scale set torque actuation accuracy
