4NT1-72

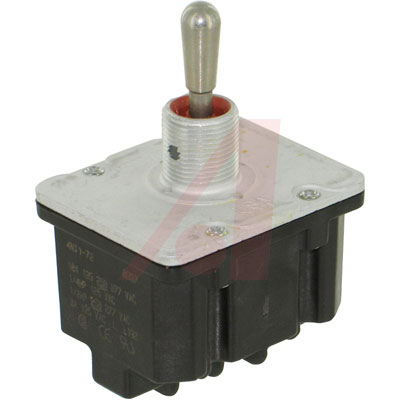

4NT1-72图片1
4NT1-72图片2
4NT1-72图片3
4NT1-72图片4
4NT1-72图片5
4NT1-72概述

Switch Toggle ON ON ON DP3T Round Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads

"s 61/62 NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

4NT1-72中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 277 V

额定电流 10 A

触点类型 4PDT

额定电流Max 18 A

工作温度Max 71 ℃

工作温度Min -40 ℃

封装参数

安装方式 Screw, Panel

外形尺寸

高度 63.25 mm

物理参数

触点材质 Silver Alloy

工作温度 -40℃ ~ 71℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买4NT1-72
型号: 4NT1-72
描述:Switch Toggle ON ON ON DP3T Round Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads
