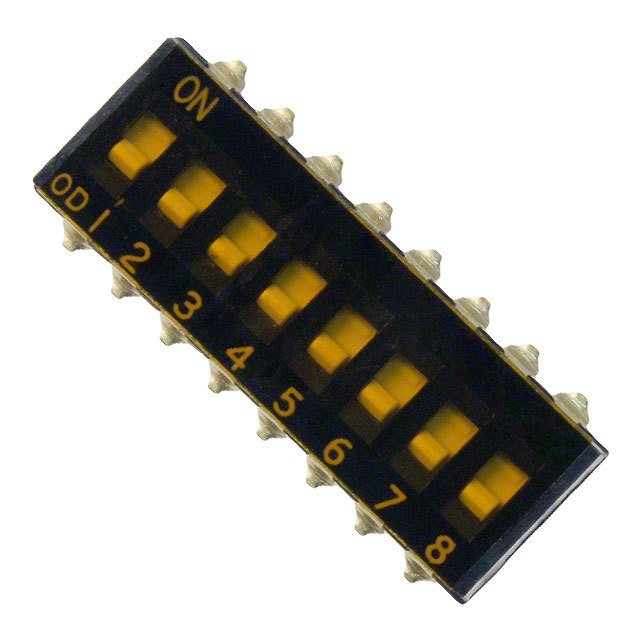

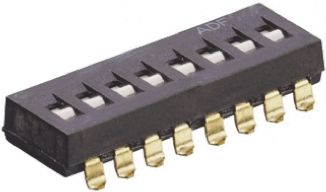

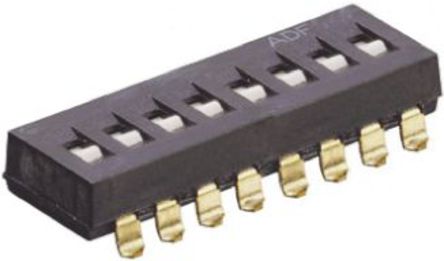

4-1825059-2

TE CONNECTIVITY  4-1825059-2  DIP / SIP开关, SPST, SMD, 8 电路, DIP密封, 24 VDC

齐平执行器滑动

高压摩擦触点，可用水或溶液清洁，无需胶带密封

可耐汽相回流焊接或波焊条件

触点电阻：50mΩ

绝缘电阻：1000 MΩ @100 V 直流

机械寿命：1000 次循环

### 双在线开关

微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

立创商城:
4-1825059-2

欧时:
### 齐平执行器滑动开关高压摩擦触点，可用水或溶液清洁，无需胶带密封 可耐汽相回流焊接或波焊条件 触点电阻：50mΩ 绝缘电阻：1000 MΩ @100 V 直流 机械寿命：1000 次循环 ### DIL 表面安装### 双在线开关微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

e络盟:
DIP / SIP开关, 8 电路, 滑动式, SMD, SPST, 24 VDC, 100 mA

艾睿:
Does your printed circuit board need some type of electronic flow control? The 4-1825059-2 dual in-line package switch, developed by TE Connectivity, is the component you need. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 24VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 4-1825059-2 DIP switch has a gull wing termination style. This product is 22.3 mm long, 4.44 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm.

安富利:
Switch DIP OFF ON SPST 8 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R

Chip1Stop:
Switch DIP OFF ON SPST 8 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R

Verical:
Switch DIP OFF ON SPST 8 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R

Newark:
# TE CONNECTIVITY  4-1825059-2  DIP / SIP Switch, 8 Circuits, SPST, SMD, ADF Series, DIP Sealed, 24 V

MASTER:
DIP SWITCH, ADF-SMT SERIES

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Electro Sonic:
ADF08STTR04=DIP S,FLUSH,SMT-GW
