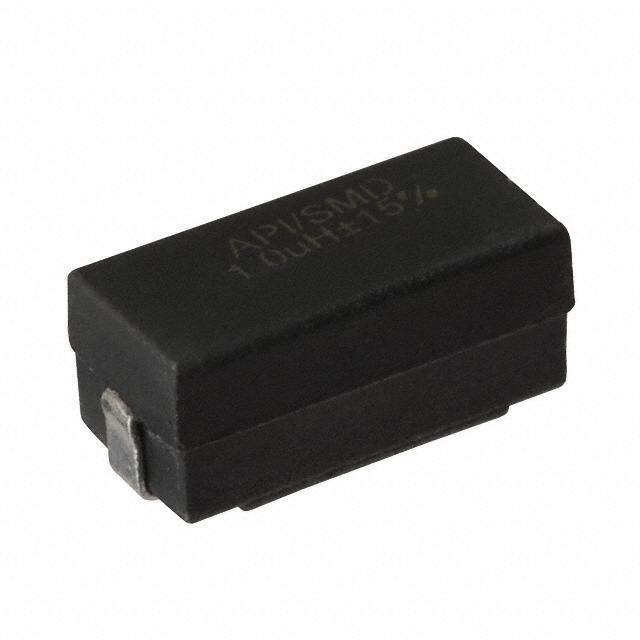

4922R-17L

Inductor; RF; Ind 22uH; Tol 15%; Cur 1.61A; SMT; DCR 0.152Ω

4922R, 4922 Series High Current Surface Mount Power Inductors, 0.490 to 0.520 " L

** Operating Temperature Range:** -55°C to +125°C

** Current Rating at 85°C Ambient:** 40°C Rise

** Maximum Power Dissipation at 85°C:** 0.55 W

** Inductance:** Measured at 1 VAC open circuit with no DC current.

** Incremental Current:** The current at which the inductance will be decreased by a maximum of 5% from its initial zero DC value.

** Optional Tolerances:** 10% and 5% available. 3% also available for values ≥ 10 μH

Leads are pre-tinned. A high resistivity ferrite core allows for high inductance with low DC resistance.
