交流线路额定瓷片电容器级X1 ， 760 VAC / Y1类， 500 VAC AC Line Rated Ceramic Disc Capacitors Class X1, 760 VAC/Class Y1, 500 VAC
DESIGN

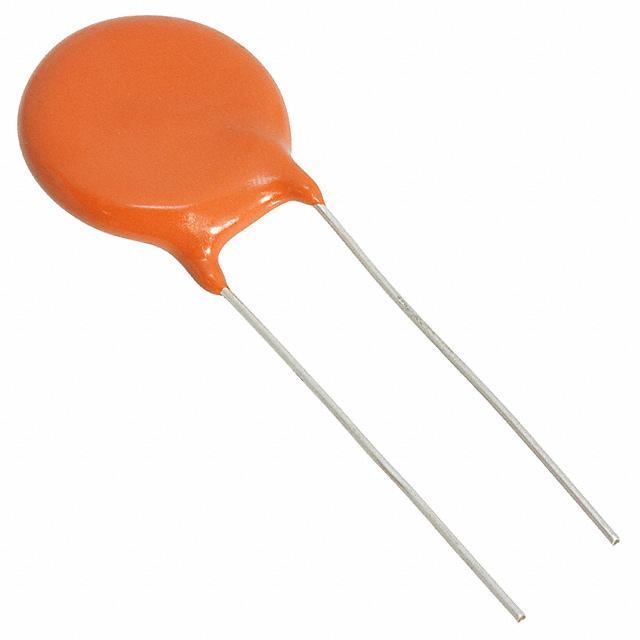

The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having a diameter of 0.032" 0.81 mm. The capacitors may be supplied with radial kinked or straight leads having a lead spacing of 0.375" 9.5 mm. The standard tolerances are ± 10 % or ± 20 %. Coating is made of flame retardant epoxy resin in accordance with “UL 94 V-0”.
FEATURES
• Worldwide Safety Agency Recognition Underwriters Laboratories - UL 1414 and UL 1283
Canadian Standards Association - CSA 22.2 European EN132400 to IEC 60384-14 Second Edition
• Complete range of capacitance values
• Radial leads
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Required in AC power supply and filter applications
• Specific industry requirements
