DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

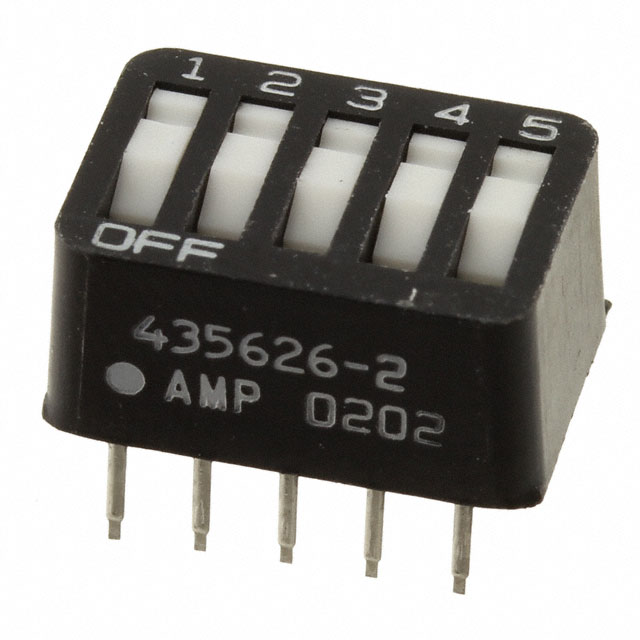

Use "s dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.1 A @ 5VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -55 °C to 105 °C. The 435626-2 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product is 14.73 mm long, 7.36 mm tall and 9.65 mm deep. This product"s terminal pitch is 2.54 mm.
触点电镀 Gold, Gold over Nickel
接触器类型 Rocker
额定电流 25 mA
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 0.1A @5VDC
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 14.73 mm
宽度 9.65 mm
高度 7.36 mm
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
