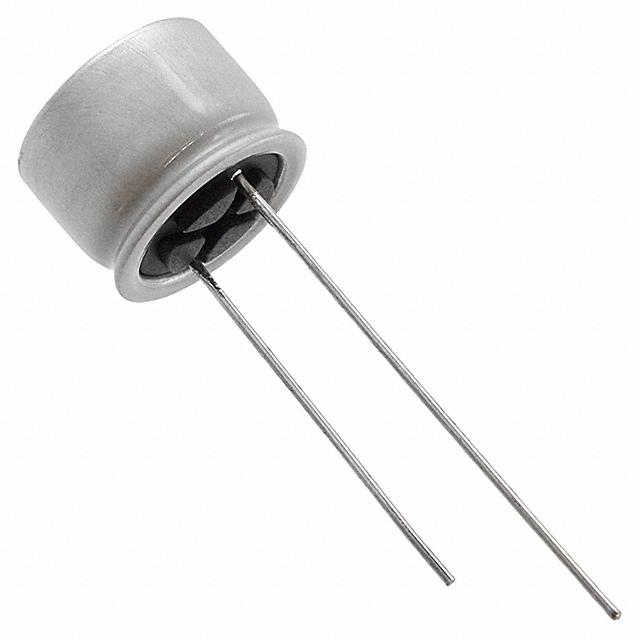

4SEP680M+T

Cap Aluminum Polymer 680uF 4VDC 20% 10 X 8mm Radial 5mm 0.025Ω 3700mA 3000H 105℃ T/R

Look no further than the conductive polymer aluminum solid capacitor from , ideal for use in supporting changes in the load of an integrated circuit. It can withstand a voltage of 4 VDC. Users like its long lead wire form. This part has a lead diameter of 0.5 mm. It has 2 terminals. This product is 8Max mm tall with a diameter of 10 mm. Its leakage current is 544@2Min μA. This product"s terminal pitch is 5 mm. It has a tolerance of 20%. The 4SEP680M+T conductive polymer aluminum solid capacitor has a radial termination style. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
