4-1761184-1

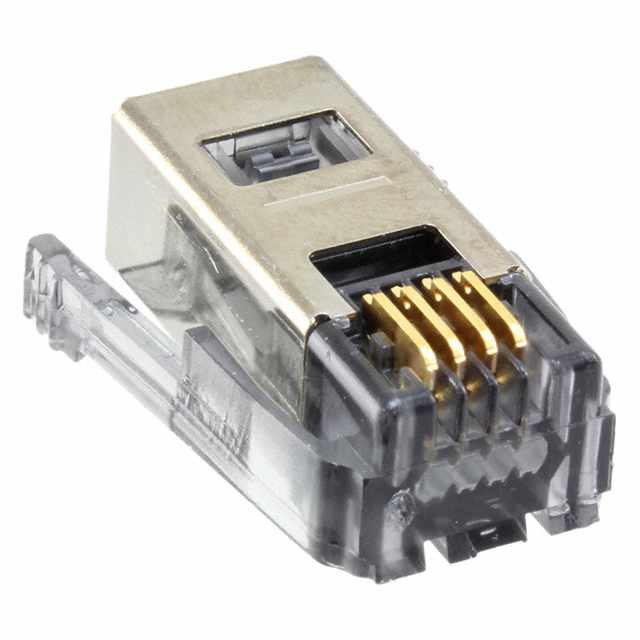

4-1761184-1图片1
4-1761184-1图片2
4-1761184-1图片3
4-1761184-1图片4
4-1761184-1图片5
4-1761184-1图片6
4-1761184-1概述

Conn SDL PL 4POS 1.27mm Crimp ST Cable Mount 4 Terminal 1Port

SDL,플러그 模块化 4 位置 位置 屏蔽 - 压接


得捷:
CONN PLUG 4POS SDL AU FLAT


艾睿:
Never drop a call or phone connection using this sdl 4-1761184-1 telephone and telecom connector from TE Connectivity. This PL connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a straight body orientation. It has a plug type gender. Its pitch is 1.27 mm. It uses the crimp termination method. 4-1761184-1 is housed in gray polycarbonate.


安富利:
Conn SDL PL 4 POS 1.27mm Crimp ST Cable Mount 4 Terminal 1 Port


Chip1Stop:
Conn SDL PL 4 POS 1.27mm Crimp ST Cable Mount 4 Terminal 1 Port


Verical:
Conn SDL PL 4 POS 1.27mm Crimp ST Cable Mount 4 Terminal 1 Port


Powell:
Shielded Data Link


Electro Sonic:
4 SDL FLAT PLUG ASSY


4-1761184-1中文资料参数规格
技术参数

触点数 4

极性 Male

触点电镀 Gold

芯数 4

额定电流Max 1.5A/触头

工作温度Max 80 ℃

工作温度Min -20 ℃

外形尺寸

长度 22.61 mm

物理参数

外壳颜色 Gray

触点材质 Copper Alloy

工作温度 -20℃ ~ 80℃

外壳材质 Polycarbonate

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

ELV标准 Compliant

海关信息

ECCN代码 EAR99

数据手册

在线购买4-1761184-1
型号: 4-1761184-1
描述:Conn SDL PL 4POS 1.27mm Crimp ST Cable Mount 4 Terminal 1Port
