DIGILENT 410-279P-KIT 开发板, XC7Z010 Zybo, Cortex-A9, 650MHz双核CPU & Artix-7 FPGA

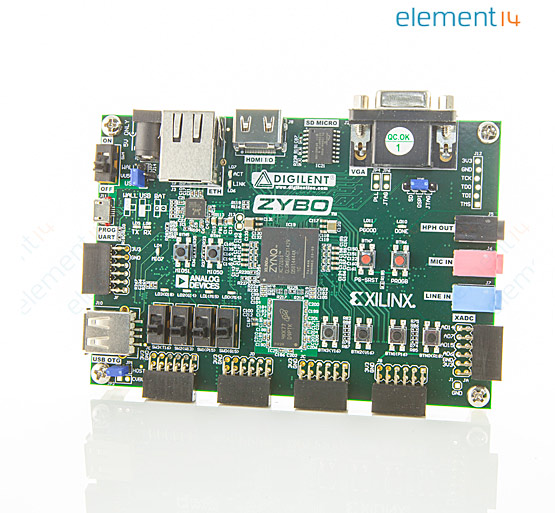

The is a ZYBO Zynq-7000 development board. It is a feature rich, ready to use, entry level embedded software and digital circuit development platform built around the smallest member of the Xilinx Zynq-7000 family, the Z-7010. The Z-7010 is based on the Xilinx all programmable system on chip AP SoC architecture, which tightly integrates a dual core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array FPGA logic. The ZYBO provides an ultra low cost alternative to the ZedBoard, for designers those do not require the high density I/O of the FMC connector and want to leverage the massive processing power and extensibility of the Zynq AP SoC architecture. The ZYBO is compatible with Xilinx"s new high performance Vivado Design Suite as well as the ISE/EDK toolset.
- .
- 512MB x 32 DDR3 with 1050Mbps bandwidth
- .
- Dual role Source/Sink HDMI port, 16bits per pixel VGA output port and tri-mode Ethernet PHY
- .
- MicroSD slot supports Linux file system
- .
- OTG USB 2.0 PHY supports host and device
- .
- Audio codec with headphone out, microphone and line in jacks
- .
- 128MB serial flash with QSPI interface
- .
- Onboard JTAG programming and UART to USB converter
- .
- 6 pushbuttons, 5 LEDs and 4 slide switches
- .
- Six Pmod connectors
