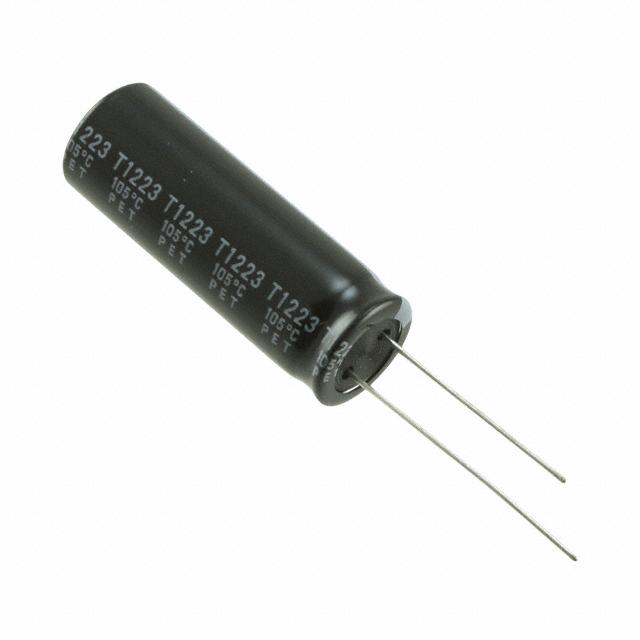

RUBYCON 450BXW120MEFC18X35 铝电解电容, 微型, BXW系列, 120 µF, ± 20%, 450 V, 18 mm, 径向引线
The is a miniature aluminium Electrolytic Capacitor with radial leaded terminals and PET sleeve. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 1.935A RMS at 100kHz/105°C and 0.860A RMS at 120Hz/105°C Rated ripple current
额定电压DC 450 V
电容 120 µF
容差 ±20 %
纹波电流 860 mA
纹波电流高频 860mA @120Hz
纹波电流低频 1.935A @100kHz
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
高度 35 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -25℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Each
寿命（小时） 12000h @105℃
制造应用 Aerospace, Defence, Military, Multimedia, 通用, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
