RUBYCON 450VXG150MEFCSN30X25 铝电解电容, 摁入式, VXG系列, 150 µF, ± 20%, 450 V, 30 mm
The is an aluminium Electrolytic Capacitor with snap-in terminals. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 1.08A RMS at 120Hz/105°C Rated ripple current
额定电压DC 450 V
电容 150 µF
容差 ±20 %
纹波电流 900 mA
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
引脚数 2

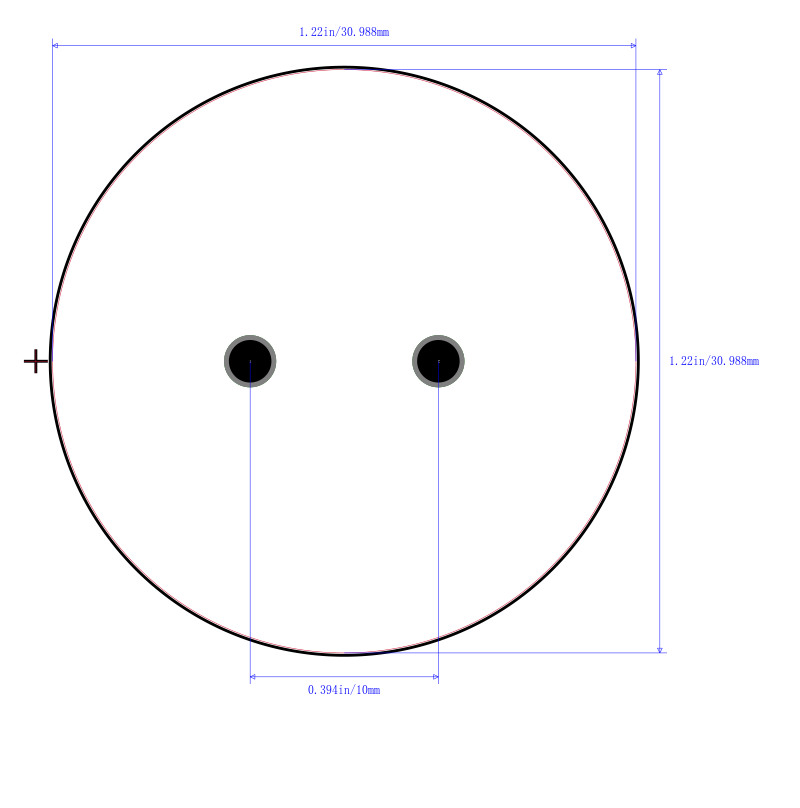

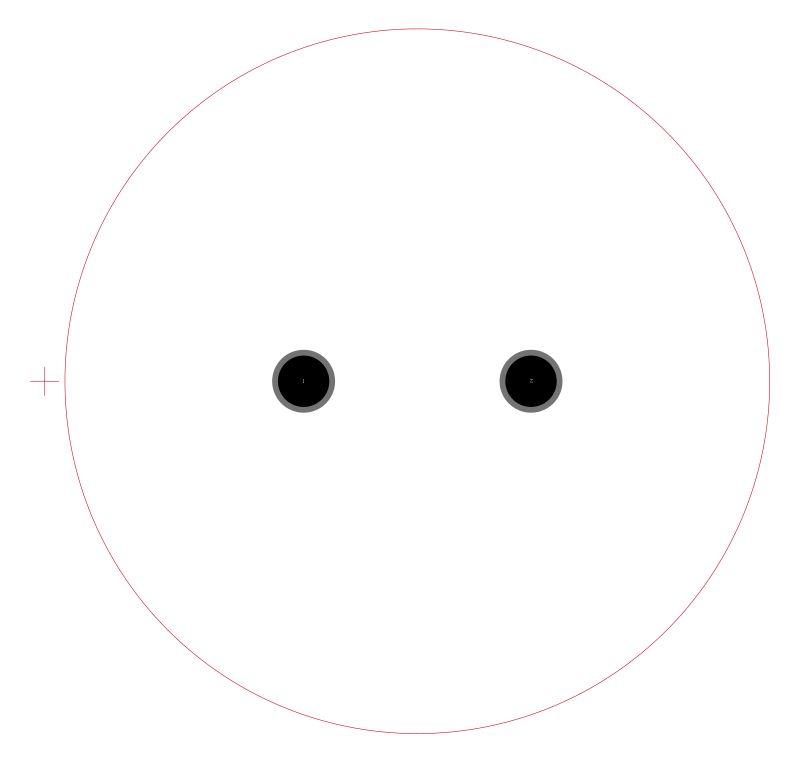

封装 Radial, CAN
引脚间距 10 mm
高度 25 mm
直径 30.0 mm
封装 Radial, CAN
引脚间距 10 mm
介质材料 Aluminum Electrolytic
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 100
寿命（小时） 5000h @105℃
制造应用 Aerospace, Defence, Military, Multimedia, 通用, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
