4-1609156-0

4-1609156-0图片1
4-1609156-0图片2
4-1609156-0图片3
4-1609156-0图片4
4-1609156-0图片5

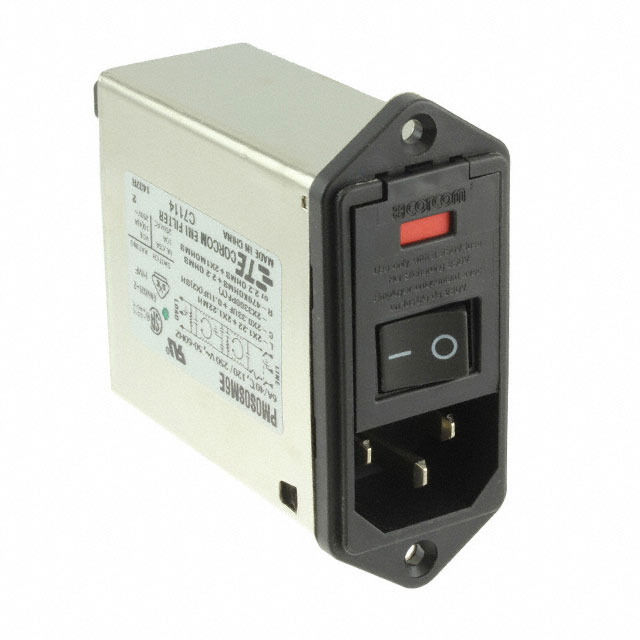

4-1609156-0图片6
4-1609156-0概述

Power Entry Module EMI/RFI Filtered M 3POS 250VAC 6A Switch/Fuse/Voltage Selector ST 1Port

The Corcom P series power entry modules offer a range of options in a compact size. The high performance filtered versions of this product are now available in a vertical mounting tab style.


艾睿:
Power Entry Module EMI/RFI Filtered M 3 POS 250VAC 6A Switch/Fuse/Voltage Selector ST 1 Port


Chip1Stop:
Power Entry Module EMI/RFI Filtered M 3 POS 250VAC 6A Switch/Fuse/Voltage Selector ST 1 Port


Verical:
Power Entry Module EMI/RFI Filtered M 3 POS 250VACVAC 6A Switch/Fuse/Voltage Selector ST 1 Port


Online Components:
PM0S0SM6E=C7114


Electro Sonic:
PM0S0SM6E=C7114


4-1609156-0中文资料参数规格
技术参数

触点数 3

额定电流Max 6 A

额定电压Max 250 VAC

额定电压AC Max 250 V

封装参数

安装方式 Panel, Snap-In, Quick Connect

外形尺寸

长度 30.98 mm

宽度 74.67 mm

高度 73.15 mm

物理参数

工作温度 -10℃ ~ 40℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买4-1609156-0
型号: 4-1609156-0
描述:Power Entry Module EMI/RFI Filtered M 3POS 250VAC 6A Switch/Fuse/Voltage Selector ST 1Port
