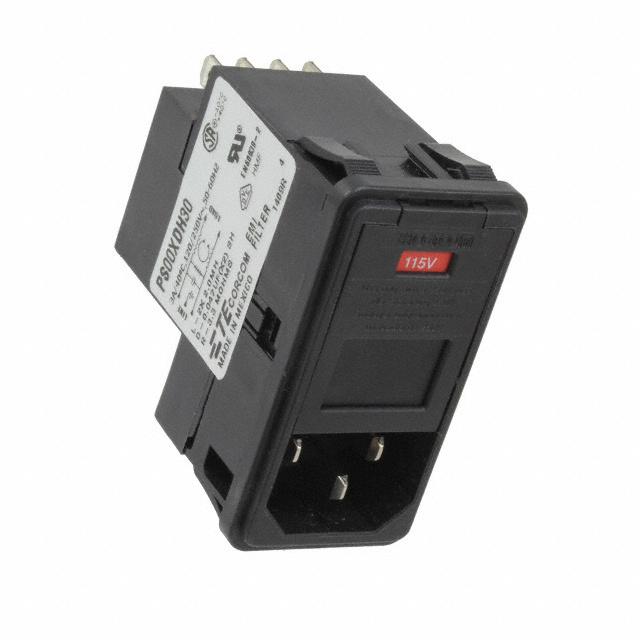

4-6609106-3图片9
4-6609106-3概述

Power Entry Module EMI/RFI Filtered PL 3POS 250VAC 3A Switch ST 1Port

Corcom medium performance P series power entry modules. The medium P Series modules features better performance than the standard filter option in a smaller size than the high performancefilter.


艾睿:
Power Entry Module EMI/RFI Filtered PL 3 POS 115VAC/230VACVAC 3A Switch ST 1 Port


安富利:
Power Entry Module EMI/RFI Filtered PL 3 POS 250VAC 3A Switch ST 1 Port


Chip1Stop:
Power Entry Module EMI/RFI Filtered PL 3 POS 250VAC 3A Switch ST 1 Port


MASTER:
Customer Drawing P-Series


Electro Sonic:
PS00XDH30=C1262


4-6609106-3中文资料参数规格
技术参数

触点数 3

极性 Male

针脚数 3

额定电流Max 3 A

工作温度Max 40 ℃

工作温度Min -10 ℃

额定电压Max 250 VAC

额定电压AC Max 250 V

封装参数

安装方式 Snap-In

外形尺寸

长度 30.98 mm

高度 58.16 mm

物理参数

工作温度 -10℃ ~ 40℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536698000

数据手册

在线购买4-6609106-3
型号: 4-6609106-3
制造商: TE Connectivity 泰科
描述:Power Entry Module EMI/RFI Filtered PL 3POS 250VAC 3A Switch ST 1Port
