4303.1032

4303.1032图片1
4303.1032图片2
4303.1032图片3
4303.1032图片4
4303.1032图片5
4303.1032概述

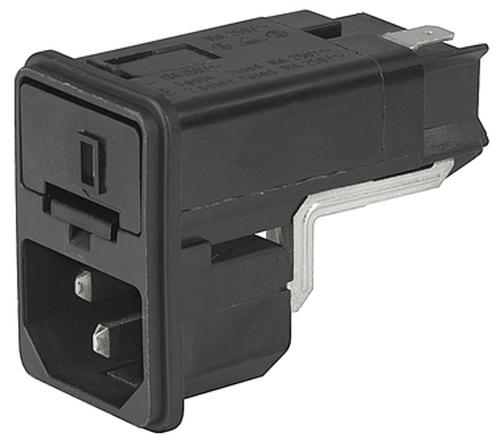

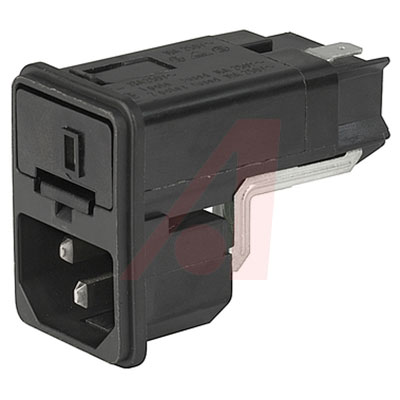

Power Entry Module Unfiltered M 3POS 250VAC 10A Fuse/Voltage Selector ST 1Port

**KEC Series Power Entry Modules**

The KEC series of power entry modules are designed for use in a variety of applications and are available with a choice of connectivity options. The KEC connectors are equipped with a "V-Lock" notch intended for use with the latching cordset. This cord latching system prevents against accidental removal of the cordset.


得捷:
PWR ENT MOD RCPT IEC320-C14 PNL


Allied Electronics:
PEM w/Fuseholder; IEC; C14; 1P; 125VAC; 13A; Panel Mnt-Snap-1.5mm; QC Terminals; IP40


安富利:
KEC POWER ENTRY MODUL 10A


Verical:
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port


MASTER:
KEC POWER ENTRY MODUL 10A


Electro Sonic:
KEC POWER ENTRY MODUL 10A


CDI:
KEC POWER ENTRY MODUL 10A


4303.1032中文资料参数规格
技术参数

触点数 3

针脚数 3

额定电流Max 10 A

额定电压Max 250 VAC

封装参数

安装方式 Panel, Snap-In, Quick Connect

外形尺寸

高度 43.5 mm

物理参数

工作温度 -25℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536698000

数据手册

在线购买4303.1032
型号: 4303.1032
制造商: Schurter
描述:Power Entry Module Unfiltered M 3POS 250VAC 10A Fuse/Voltage Selector ST 1Port
