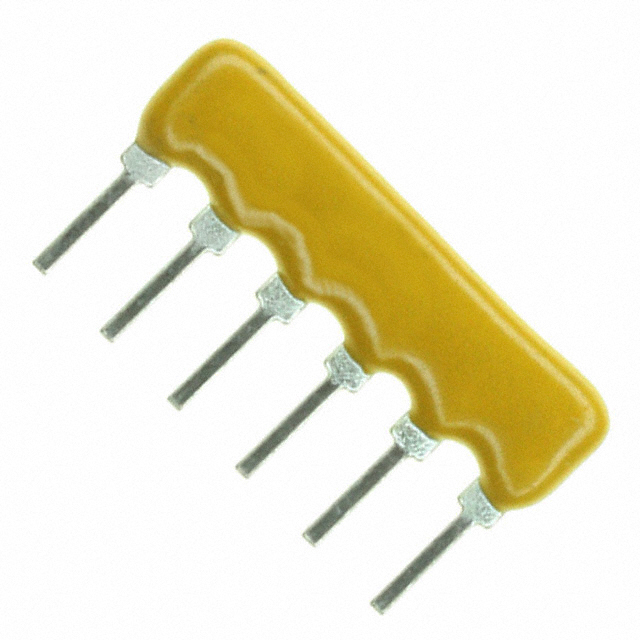

4606X-101-511LF

4606X-101-511LF图片1
4606X-101-511LF图片2
4606X-101-511LF图片3
4606X-101-511LF图片4
4606X-101-511LF图片5
4606X-101-511LF概述

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.75W, 510Ω, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT

510 Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP


立创商城:
510Ω ±2%


得捷:
RES ARRAY 5 RES 510 OHM 6SIP


贸泽:
Resistor Networks & Arrays 6Pin 2% 510ohm Bussed


艾睿:
If you&s;re looking to conserve space in your circuit design, then this 4606X-101-511LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 510 Ohm. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%. The 4606X-101-511LF part has a pin termination style. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C.


安富利:
Res Thick Film NET 510 Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk


TME:
Resistor network: X; 510Ω; No.of resistors:5; THT; 200mW; ±2%; 100V


Electro Sonic:
Res Thick Film NET 510 Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk


4606X-101-511LF中文资料参数规格
技术参数

容差 ±2 %

额定功率 0.75 W

电阻 510 Ω

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 100 V

封装参数

安装方式 Through Hole

引脚数 6

封装 SIP-6

外形尺寸

长度 15.19 mm

宽度 2.49 mm

高度 5.08 mm

封装 SIP-6

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买4606X-101-511LF
型号: 4606X-101-511LF
制造商: Bourns J.W. Miller 伯恩斯
描述:Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.75W, 510Ω, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT
