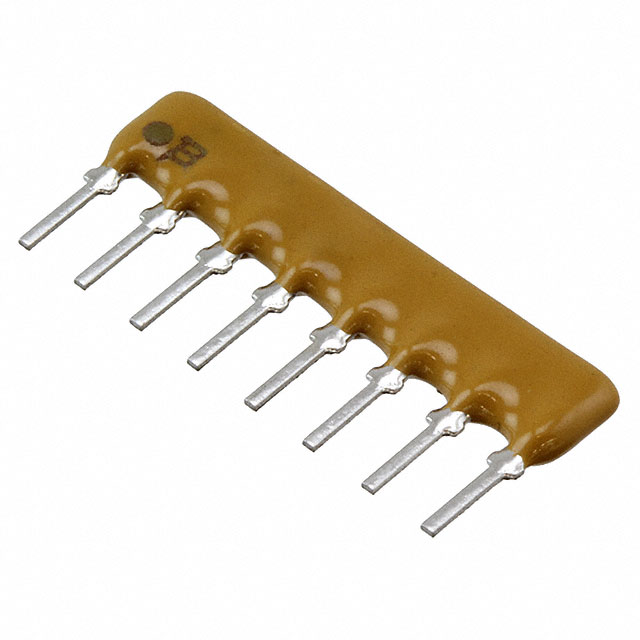

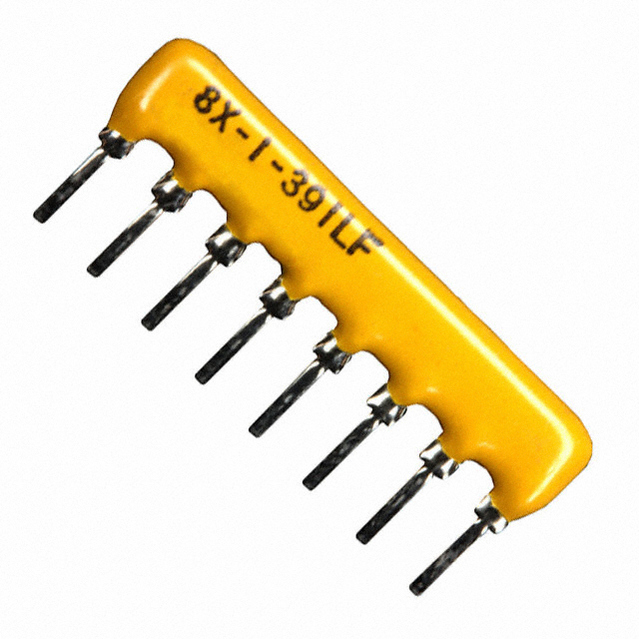

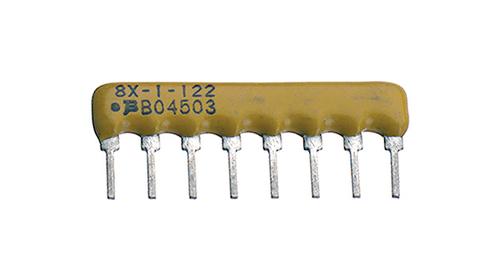

4608X-101-391LF

Res Thick Film NET 390Ω 2% 1W 100ppm/℃ BUS Conformal 8Pin SIP Pin Thru-Hole Bulk

By combining multiple resistors into a single chip, the resistor array, developed by Bourns, can help you save space and power in your circuit design. This product"s 7 resistors have a value of 390 Ohm. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 4608X-101-391LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. This product"s terminal pitch is 2.54 mm. This device utilizes thick film technology.
