4608X-101-680LF

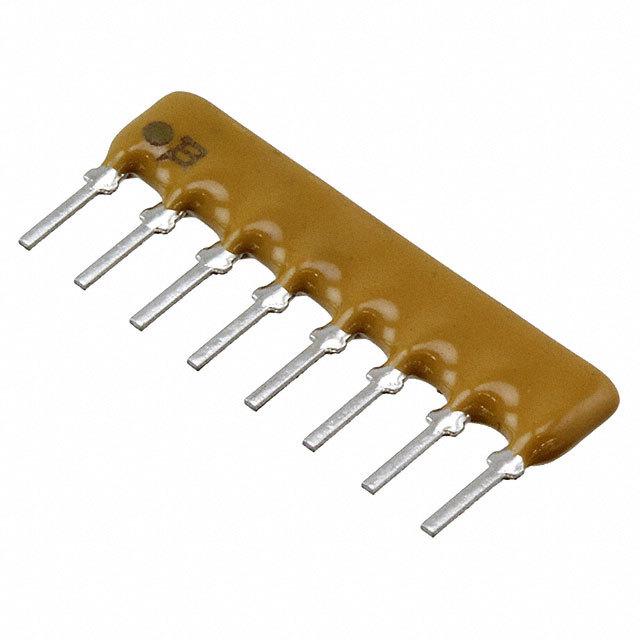

4608X-101-680LF图片1
4608X-101-680LF图片2
4608X-101-680LF图片3
4608X-101-680LF图片4
4608X-101-680LF图片5
4608X-101-680LF图片6
4608X-101-680LF图片7
4608X-101-680LF图片8
4608X-101-680LF图片9
4608X-101-680LF图片10
4608X-101-680LF概述

Res Thick Film NET 68Ω 2% 1W 100ppm/℃ BUS Conformal 8Pin SIP Pin Thru-Hole Bulk

68 Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 8-SIP


得捷:
RES ARRAY 7 RES 68 OHM 8SIP


艾睿:
If you&s;re looking to conserve space in your circuit design, then this 4608X-101-680LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 7 resistors have a value of 68 Ohm. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. The 4608X-101-680LF part has a pin termination style. This product&s;s terminal pitch is 2.54 mm. This device utilizes thick film technology. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. It has a tolerance of 2%.


安富利:
Res Thick Film NET 68 Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk


Chip1Stop:
Res Thick Film NET 68 Ohm 2% 1W 100ppm/ C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk


Verical:
Res Thick Film NET 68 Ohm 2% 1W ±100ppm/C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk


MASTER:
Res Thick Film NET 68 Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk


Electro Sonic:
Res Thick Film NET 68 Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk


4608X-101-680LF中文资料参数规格
技术参数

触点数 8

额定电压DC 100 V

容差 ±2 %

额定功率 1 W

电阻 68 Ω

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 8

封装 SIP-8

外形尺寸

长度 20.27 mm

宽度 2.49 mm

高度 5.08 mm

封装 SIP-8

厚度 2.49 mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210050

数据手册

在线购买4608X-101-680LF
型号: 4608X-101-680LF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Thick Film NET 68Ω 2% 1W 100ppm/℃ BUS Conformal 8Pin SIP Pin Thru-Hole Bulk
