Res Thick Film NET 18KΩ 2% 0.75W3/4W 100ppm/℃ BUS Conformal 6Pin SIP Pin Thru-Hole Bulk
18k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP
立创商城:
18kΩ ±2%
得捷:
RES ARRAY 5 RES 18K OHM 6SIP
艾睿:

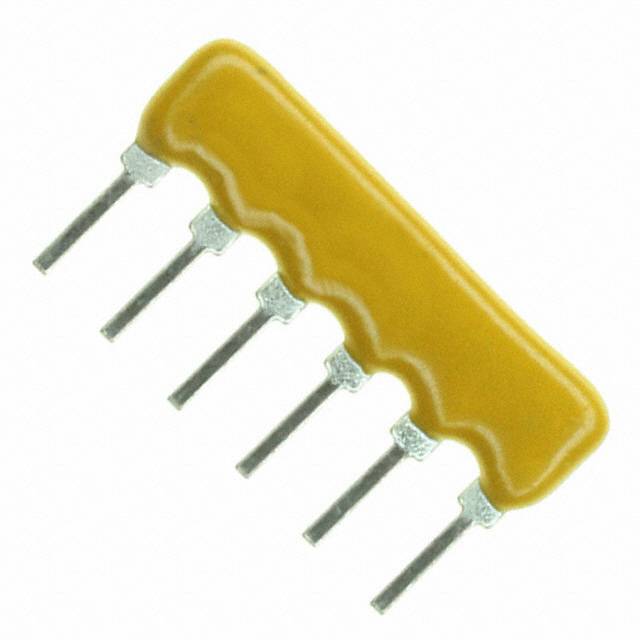

Downsize multiple resistors onto a single chip with the 4606X-101-183LF resistor array, developed by Bourns. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 5 resistors have a value of 18K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep. This product&s;s terminal pitch is 2.54 mm. The 4606X-101-183LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This device utilizes thick film technology.
安富利:
Res Thick Film NET 18K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 18K Ohm 2% 0.75W3/4W 100ppm/ C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 18K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
