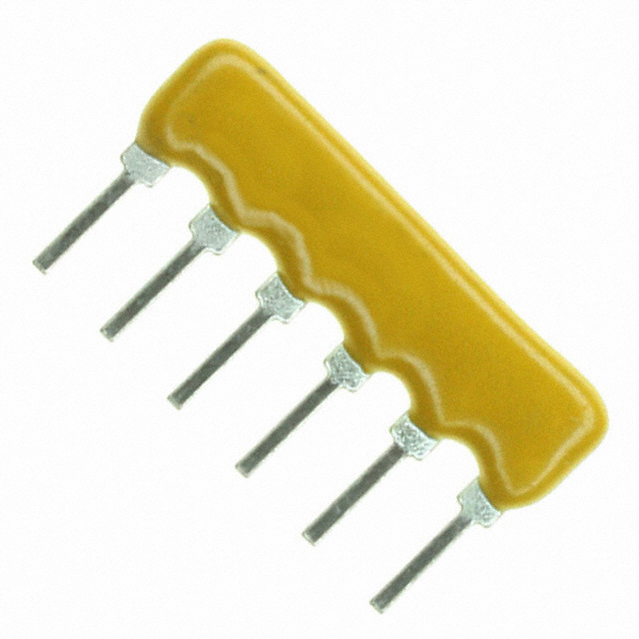

4606X-102-151LF

Res Thick Film NET 150Ω 2% 0.75W3/4W 100ppm/℃ ISOL Conformal 6Pin SIP Pin Thru-Hole Bulk

150 欧姆 ±2% 300mW 每元件功率 隔离 3 器网络，阵列 ±100ppm/°C 6-SIP

得捷:
RES ARRAY 3 RES 150 OHM 6SIP

立创商城:
150Ω ±2%

艾睿:
Use this 4606X-102-151LF resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. This product&s;s 3 resistors have a value of 150 Ohm. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep. The 4606X-102-151LF part has a pin termination style.

安富利:
Res Thick Film NET 150 Ohm 2% 3/4W ±100ppm/°C ISOL Conformal 6-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 150 Ohm 2% 0.75W3/4W 100ppm/ C ISOL Conformal 6-Pin SIP Pin Thru-Hole Bulk

Verical:
Res Thick Film NET 150 Ohm 2% 0.75W3/4W ±100ppm/C ISOL Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4606X-102-151LF  Fixed Network Resistor, Bussed, 150 ohm, 100 V, 3 Elements, Isolated, SIP, 300 mW

MASTER:
Res Thick Film NET 150 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 150 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
