4606X-102-332LF

固定阵列电阻, 3.3 kohm, 4600X Series, 3 元件, 隔离, SIP, 6 引脚

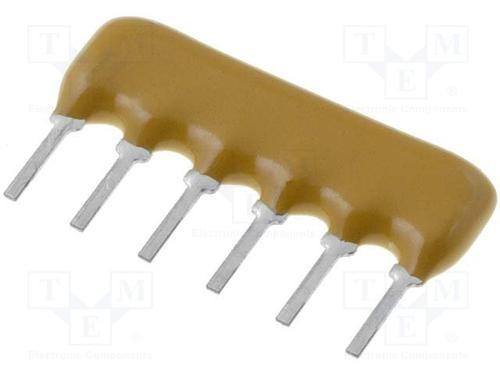

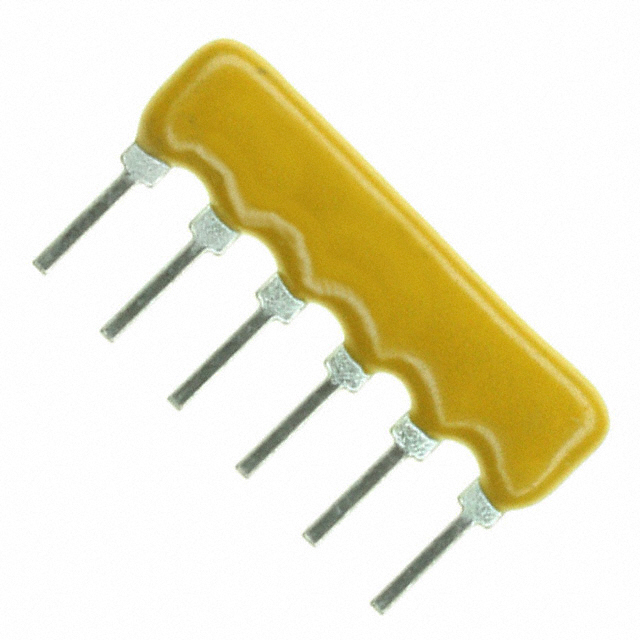

This resistor array by Bourns packs multiple resistors into one IC chip. This product"s 3 resistors have a value of 3.3K Ohm. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 2%. This device utilizes thick film technology. The 4606X-102-332LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 2.54 mm. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep.
