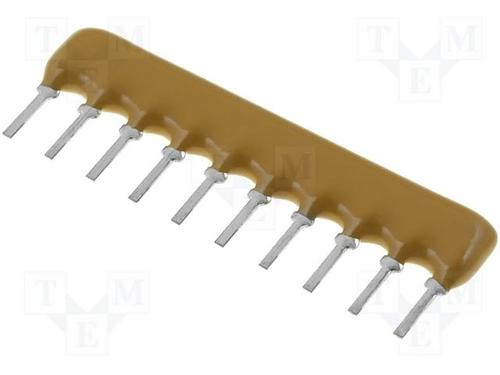

4610X-101-683LF图片1

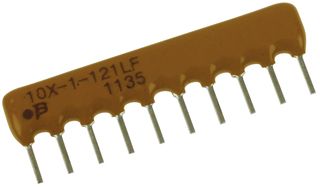

4610X-101-683LF图片2

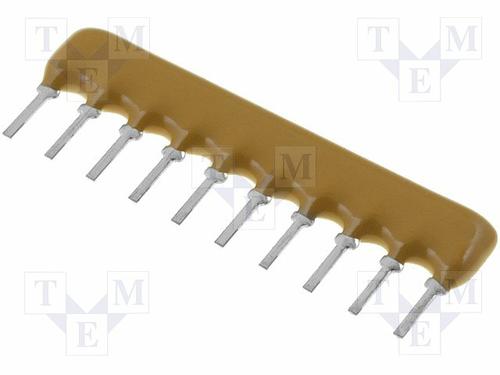

4610X-101-683LF图片3

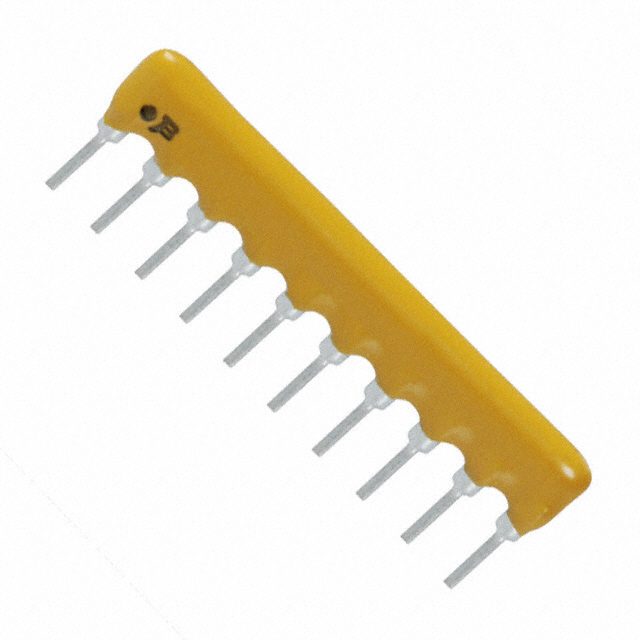

4610X-101-683LF图片4
4610X-101-683LF图片5
4610X-101-683LF图片6
4610X-101-683LF图片7
4610X-101-683LF图片8
4610X-101-683LF图片9
4610X-101-683LF概述

BOURNS  4610X-101-683LF  电阻阵列, 9X, 68KΩ, 总线型, 1.25W, ±2%

By combining multiple resistors into a single chip, the resistor array, developed by Bourns, can help you save space and power in your circuit design. This product"s 9 resistors have a value of 68K Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.25 W and a power rating per resistor of 0.2 1/5 W. It has 10 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 25.35 mm long, 5.08 mm tall and 2.49 mm deep. This product"s terminal pitch is 2.54 mm. This device utilizes thick film technology. The 4610X-101-683LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%.

4610X-101-683LF中文资料参数规格
技术参数

触点数 10

额定电压DC 100 V

容差 ±2 %

额定功率 1.25 W

针脚数 10

电阻 68 kΩ

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 100 V

封装参数

安装方式 Through Hole

引脚数 10

封装 SIP-10

外形尺寸

长度 25.35 mm

宽度 2.49 mm

高度 5.08 mm

封装 SIP-10

厚度 2.49 mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

在线购买4610X-101-683LF
型号: 4610X-101-683LF
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  4610X-101-683LF  电阻阵列, 9X, 68KΩ, 总线型, 1.25W, ±2%
替代型号4610X-101-683LF
型号/品牌 代替类型 替代型号对比

4610X-101-683LF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

4610X-101-683

伯恩斯

完全替代

4610X-101-683LF和4610X-101-683的区别

4610X-AP1-683LF

伯恩斯

类似代替

4610X-101-683LF和4610X-AP1-683LF的区别

770101683P

西迪斯

功能相似

4610X-101-683LF和770101683P的区别
