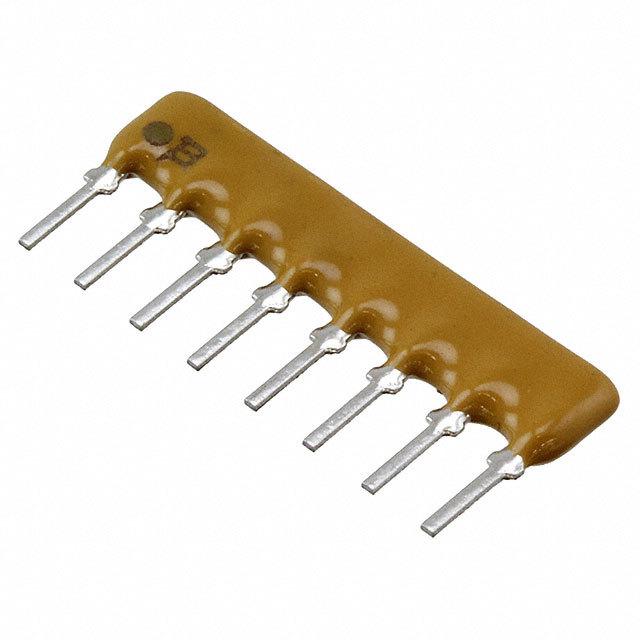

4608X-101-470LF

BOURNS  4608X-101-470LF  电阻网络, 47R

7 总线器

技术参数

---

70°C 时功率 | 0.25W（单个），1W（总体）

最大工作电压 | 100V 直流

尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm

引线间距 | 2.54mm

电阻容差 | ±2 %

温度系数 | ±100 ppm/°C

温度系数记录 | ±50 ppm/°C

工作温度 | -55°C → +125°C

得捷:
RES ARRAY 7 RES 47 OHM 8SIP

立创商城:
47Ω ±1Ω

欧时:
### 7 总线电阻器技术参数 --- 70°C 时功率 | 0.25W（单个），1W（总体） 最大工作电压 | 100V 直流 尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm 引线间距 | 2.54mm 电阻容差 | ±2 % 温度系数 | ±100 ppm/°C 温度系数记录 | ±50 ppm/°C 工作温度 | -55°C → +125°C ![http://china.rs-online.com/largeimages/L168459-01.gif]http://china.rs-online.com/largeimages/L168459-01.gif ### SIL 封装 - 总线

e络盟:
固定阵列电阻, 47 ohm, 4608X系列, 7 元件, 总线, SIP, 8 引脚

艾睿:
Conserve space and power by adopting this 4608X-101-470LF resistor array from Bourns, allowing multiple configurations of resistors to be downsized into an IC. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 7 resistors have a value of 47 Ohm. Its temperature coefficient is ±250 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product&s;s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C. The 4608X-101-470LF part has a pin termination style. This device is made with thick film technology. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep.

Allied Electronics:
Bussed Restr Network 47Ohm +/-1Ohm 7 Restrs, 1W Total, SIP package 4600X Thru Hole

安富利:
Res Thick Film NET 47 Ohm 1 Ohm 1W ±250ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 47 Ohm 1 Ohm 1W ±250ppm/℃ BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Verical:
Res Thick Film NET 47 Ohm 1 Ohm 1W ±250ppm/C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4608X-101-470LF  RESISTOR NETWORK, 47R

Electro Sonic:
Res Thick Film NET 47 Ohm 1 Ohm 1W ±250ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
