Res Thick Film NET 2.2M Ohm 2% 1W 100ppm/℃ ISOL Conformal 8Pin SIP Pin Thru-Hole Bulk
2.2M Ohm ±2% 300mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 8-SIP
立创商城:
2.2MΩ ±2%
得捷:
RES ARRAY 4 RES 2.2M OHM 8SIP
艾睿:

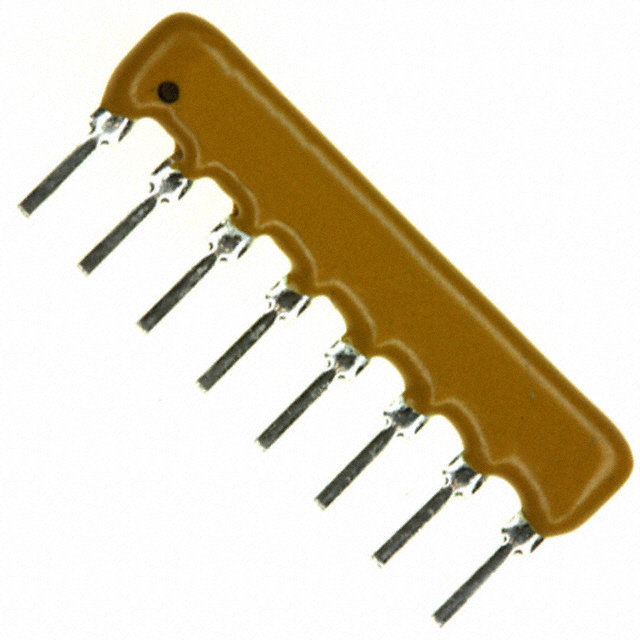

By combining multiple resistors into a single chip, the 4608X-102-225LF resistor array, developed by Bourns, can help you save space and power in your circuit design. This product&s;s 4 resistors have a value of 2.2M Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1 W and a power rating per resistor of 0.3 W. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. This device utilizes thick film technology. The 4608X-102-225LF part has a pin termination style.
安富利:
Res Thick Film NET 2.2M Ohm 2% 1W ±100ppm/°C ISOL Conformal 8-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 2.2M Ohm 2% 1W 100ppm/ C ISOL Conformal 8-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 2.2M Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
