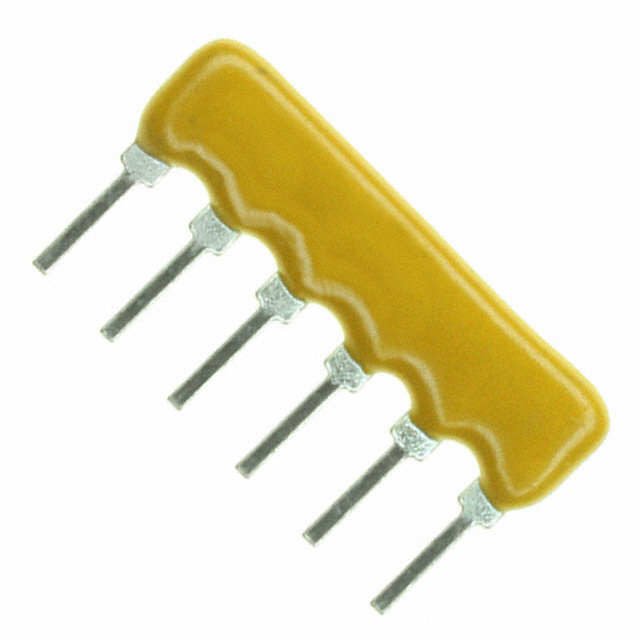

Res Thick Film NET 2KΩ 2% 0.75W3/4W 100ppm/℃ BUS Conformal 6Pin SIP Pin Thru-Hole Bulk
2k 欧姆 ±2% 200mW 每元件功率 总线式 5 器网络，阵列 ±100ppm/°C 6-SIP
得捷:
RES ARRAY 5 RES 2K OHM 6SIP
立创商城:
2kΩ ±2%
艾睿:
Res Thick Film NET 2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
安富利:
Res Thick Film NET 2K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 2K Ohm 2% 0.75W3/4W ±100ppm/℃ BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
Verical:
Res Thick Film NET 2K Ohm 2% 0.75W3/4W ±100ppm/C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
Newark:
Fixed Network Resistor, Bussed, 2 kohm, 5 Elements, SIP, Bussed, 4600X Series, 6 Pins
MASTER:
Res Thick Film NET 2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 2K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
针脚数 6
电阻 2 kΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 6
封装 SIP-6

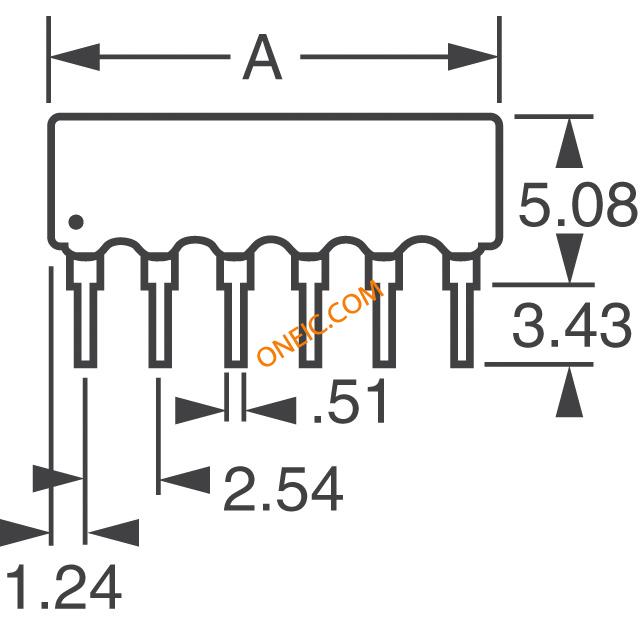

长度 15.19 mm
宽度 2.49 mm
高度 5.08 mm
封装 SIP-6
厚度 2.49 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210050
