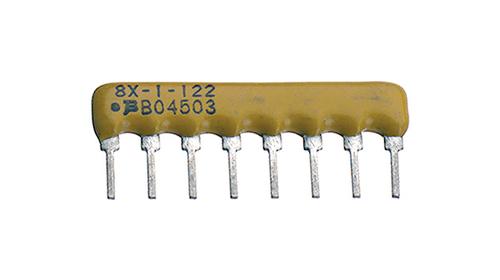

4608X-101-272LF

Res Thick Film NET 2.7KΩ 2% 1W 100ppm/℃ BUS Conformal Coated 8Pin SIP Pin Thru-Hole Bulk

2.7k 欧姆 ±2% 200mW 每元件功率 总线式 7 器网络，阵列 ±100ppm/°C 8-SIP

立创商城:
2.7kΩ ±2%

得捷:
RES ARRAY 7 RES 2.7K OHM 8SIP

艾睿:
Create more space in your circuit design by using this 4608X-101-272LF resistor array developed by Bourns that packs multiple resistors into one IC chip. This product&s;s 7 resistors have a value of 2.7K Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 4608X-101-272LF part has a pin termination style. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. This product&s;s terminal pitch is 2.54 mm.

安富利:
Res Thick Film NET 2.7K Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 2.7K Ohm 2% 1W ±100ppm/℃ BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Verical:
Res Thick Film NET 2.7K Ohm 2% 1W ±100ppm/C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4608X-101-272LF  Fixed Network Resistor, Isolated, 2.7 kohm, 100 V, 7 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 2.7K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 2.7K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
