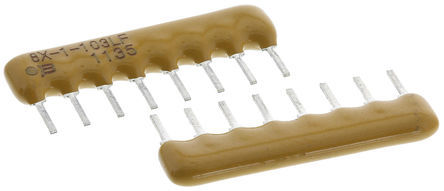

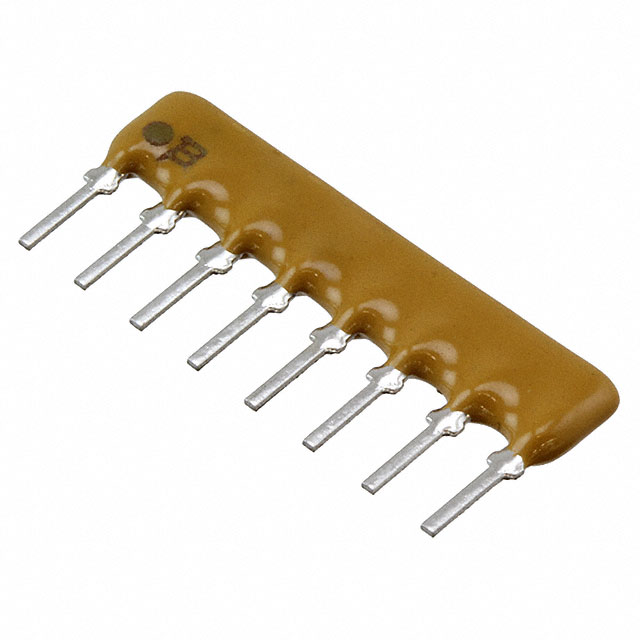

4608X-101-334LF

7 总线电阻器技术参数 --- 70°C 时功率 | 0.25W（单个），1W（总体） 最大工作电压 | 100V 直流 尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm 引线间距 | 2.54mm 电阻容差 | ±2 % 温度系数 | ±100 ppm/°C 温度系数记录 | ±50 ppm/°C 工作温度 | -55°C → +125°C ### SIL 封装 - 总线

7 总线器

技术参数

---

70°C 时功率 | 0.25W（单个），1W（总体）

最大工作电压 | 100V 直流

尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm

引线间距 | 2.54mm

电阻容差 | ±2 %

温度系数 | ±100 ppm/°C

温度系数记录 | ±50 ppm/°C

工作温度 | -55°C → +125°C

欧时:
### 7 总线电阻器技术参数 --- 70°C 时功率 | 0.25W（单个），1W（总体） 最大工作电压 | 100V 直流 尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm 引线间距 | 2.54mm 电阻容差 | ±2 % 温度系数 | ±100 ppm/°C 温度系数记录 | ±50 ppm/°C 工作温度 | -55°C → +125°C ![http://china.rs-online.com/largeimages/L168459-01.gif]http://china.rs-online.com/largeimages/L168459-01.gif ### SIL 封装 - 总线

得捷:
RES ARRAY 7 RES 330K OHM 8SIP

立创商城:
330kΩ ±2%

贸泽:
Resistor Networks & Arrays 8pins 330Kohms Bussed

艾睿:
Looking to save space and power in your circuit design? The 4608X-101-334LF resistor array from Bourns gives you a solution by combining multiple resistors into a single chip. This product&s;s 7 resistors have a value of 330K Ohm. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. The 4608X-101-334LF part has a pin termination style. This product&s;s terminal pitch is 2.54 mm. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%.

Allied Electronics:
Bussed Restr Network 330kOhm +/-2% 7 Restrs; 1W Total; SIP package 4600X Thru Hole

安富利:
Res Thick Film NET 330K Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk

Verical:
Res Thick Film NET 330K Ohm 2% 1W ±100ppm/C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 330K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
