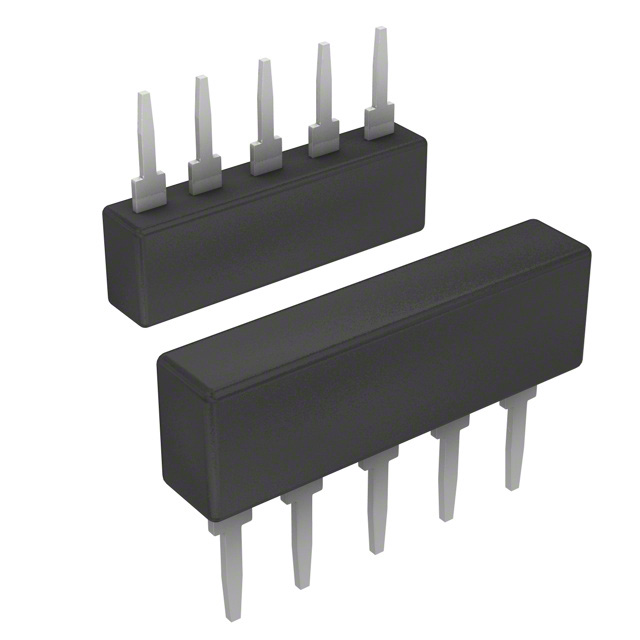

Res Thick Film NET 120Ω 2% 63/100W ±100ppm/℃ BUS Conformal 5Pin SIP Pin Thru-Hole Bulk
120 欧姆 ±2% 200mW 每元件功率 总线式 4 器网络，阵列 ±100ppm/°C 5-SIP
得捷:
RES ARRAY 4 RES 120 OHM 5SIP
立创商城:
120Ω ±2%
贸泽:
Resistor Networks & Arrays 5pins 120 OHMS Bussed
艾睿:
Res Thick Film NET 120 Ohm 2% 0.63W ±100ppm/°C BUS Conformal Coated 5-Pin SIP Pin Thru-Hole Bulk
安富利:
Res Thick Film NET 120 Ohm 2% 63/100W ±100ppm/°C BUS Conformal 5-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 120 Ohm 2% 0.63W ±100ppm/℃ BUS Conformal Coated 5-Pin SIP Pin Thru-Hole Bulk
Verical:
Res Thick Film NET 120 Ohm 2% 0.63W ±100ppm/C BUS Conformal Coated 5-Pin SIP Pin Thru-Hole Bulk
MASTER:
Res Thick Film NET 120 Ohm 2% 0.63W ±100ppm/°C BUS Conformal Coated 5-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 120 Ohm 2% 0.63W ±100ppm/°C BUS Conformal Coated 5-Pin SIP Pin Thru-Hole Bulk
容差 ±2 %
额定功率 0.63 W
电阻 120 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 5
封装 SIP-5
长度 12.65 mm
宽度 2.49 mm
高度 5.08 mm
封装 SIP-5
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210050
