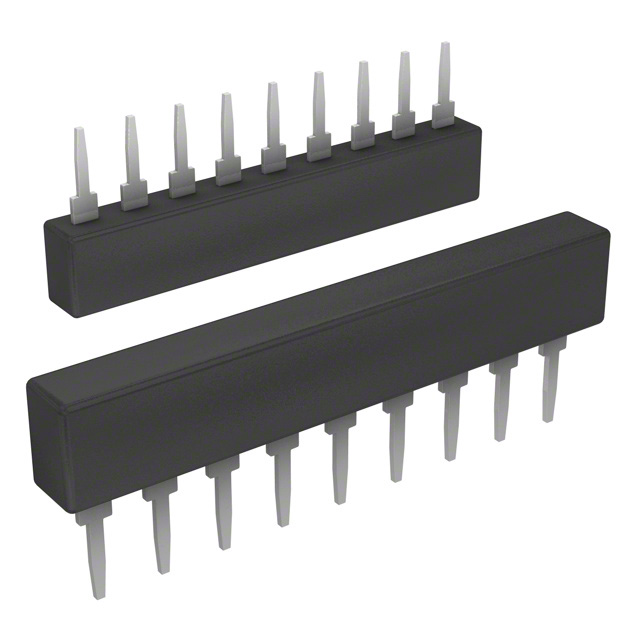

Res Thick Film NET 510Ω 2% 1.13W ±100ppm/℃ BUS Conformal 9Pin SIP Pin Thru-Hole Bulk
510 欧姆 ±2% 200mW 每元件功率 总线式 8 器网络，阵列 ±100ppm/°C 9-SIP
立创商城:
510Ω ±2%
得捷:
RES ARRAY 8 RES 510 OHM 9SIP
艾睿:
If you&s;re looking to conserve space in your circuit design, then this 4609X-101-511LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.13 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 8 resistors have a value of 510 Ohm. It has 9 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. The 4609X-101-511LF part has a pin termination style. It has a tolerance of 2%. This product is 22.81 mm long, 5.08 mm tall and 2.49 mm deep. This product&s;s terminal pitch is 2.54 mm.
安富利:
Res Thick Film NET 510 Ohm 2% 1.13W ±100ppm/°C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 510 Ohm 2% 1.13W ±100ppm/°C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
