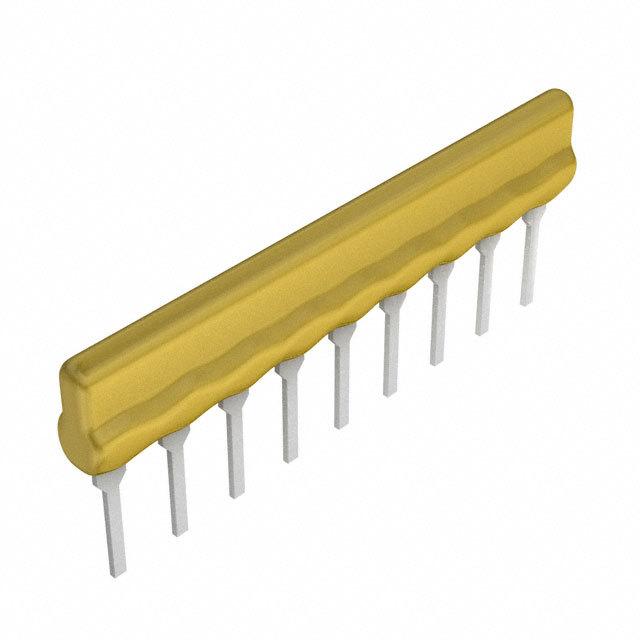

Res Thick Film NET 10M Ohm 5% 1.13W ±250ppm/℃ BUS Conformal 9Pin SIP Pin Thru-Hole Bulk
10M Ohm ±5% 200mW Power Per Element Bussed Resistor Network/Array ±250ppm/°C 9-SIP
得捷:
RES ARRAY 8 RES 10M OHM 9SIP
立创商城:
10MΩ ±5%
艾睿:
Looking to save space and power in your circuit design? The 4609X-101-106LF resistor array from Bourns gives you a solution by combining multiple resistors into a single chip. This dependable part has a power rating of 1.13 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±250 ppm/°C. This product&s;s 8 resistors have a value of 10M Ohm. It has 9 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 22.81 mm long, 5.08 mm tall and 2.49 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. The 4609X-101-106LF part has a pin termination style. It has a tolerance of 5%.
安富利:
Res Thick Film NET 10M Ohm 5% 1.13W ±250ppm/°C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 10M Ohm 5% 1.13W ±250ppm/°C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
