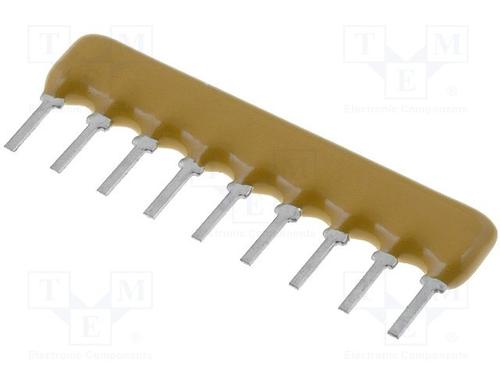

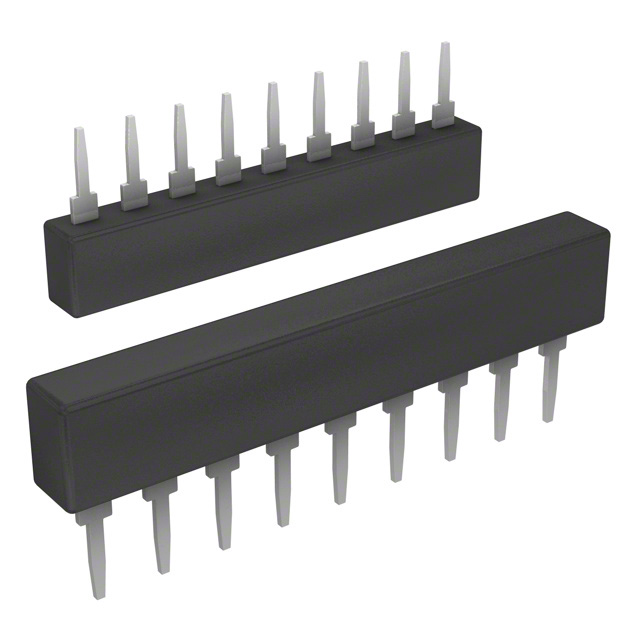

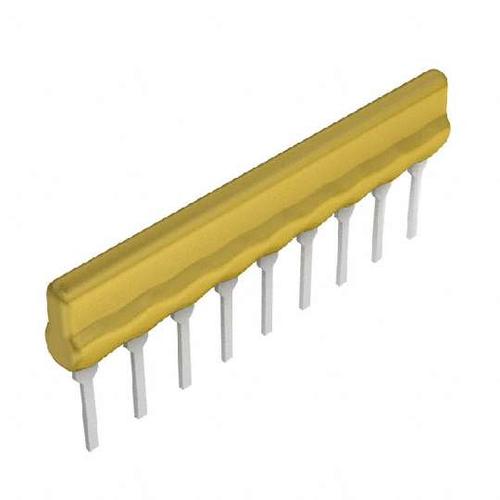

Res Thick Film NET 68KΩ 2% 1.13W 100ppm/℃ BUS Conformal 9Pin SIP Pin Thru-Hole Bulk
68k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 9-SIP
立创商城:
68kΩ ±2%
得捷:
RES ARRAY 8 RES 68K OHM 9SIP
艾睿:
Looking to save space and power in your circuit design? The 4609X-101-683LF resistor array from Bourns gives you a solution by combining multiple resistors into a single chip. This dependable part has a power rating of 1.13 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 8 resistors have a value of 68K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 9 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 4609X-101-683LF part has a pin termination style. This product is 22.81 mm long, 5.08 mm tall and 2.49 mm deep. It has a tolerance of 2%. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm.
安富利:
Res Thick Film NET 68K Ohm 2% 1.13W ±100ppm/°C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 68K Ohm 2% 1.13W ﾂｱ100ppm/C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
TME:
Resistor network: X; 68kΩ; No.of resistors:8; THT; 0.2W; ±2%; 100V
Verical:
Res Thick Film NET 68K Ohm 2% 1.13W ±100ppm/C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 68K Ohm 2% 1.13W ±100ppm/°C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
