4610X-101-224LF

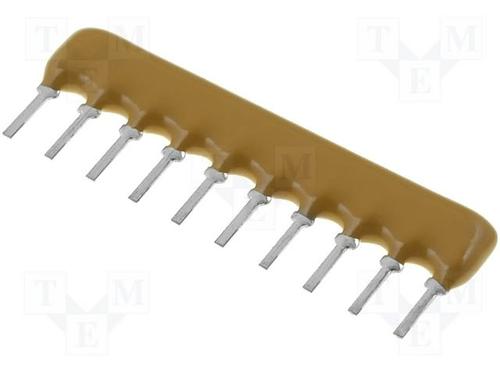

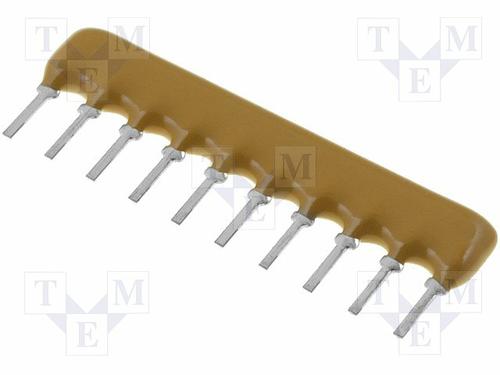

BOURNS  4610X-101-224LF  电阻阵列, 总线式, 9x, 220KΩ, 2%, SIP

9 总线器

70°C 时功率 | 0.2W（单个），1.25W（总体）

---|---

最大工作电压 | 100V 直流

尺寸（长 x 宽 x 高） | 25.35 mm x 2.49 mm x 5.08 mm

引线间距 | 2.54mm

电阻容差 | ±2%

温度系数 | ±100ppm/°C

温度系数记录 | ±50ppm/°C

工作温度 | -55°C → +125°C

得捷:
RES ARRAY 9 RES 220K OHM 10SIP

立创商城:
220kΩ ±2%

欧时:
Bourns 4600X 系列 220kΩ 9电阻 排阻 4610X-101-224LF, ±2%容差, 总线, 额定1.25W, SIP 封装

贸泽:
电阻器网络与阵列 10pins 220Kohms Bussed

e络盟:
BOURNS  4610X-101-224LF  电阻阵列, 总线式, 9x, 220KΩ, 2%, SIP

艾睿:
Res Thick Film NET 220K Ohm 2% 1.25W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk

Allied Electronics:
220kOhm +/-2% Bussed Restr Network, 9 Restrs, 1.25W total SIP package Pin

安富利:
Res Thick Film NET 220K Ohm 2% 1.25W ±100ppm/°C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 220K Ohm 2% 1.25W 100ppm/ C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: X; 220kΩ; No.of resistors:9; THT; 0.2W; ±2%; 100V

Verical:
Res Thick Film NET 220K Ohm 2% 1.25W ±100ppm/C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4610X-101-224LF  Fixed Network Resistor, Isolated, 220 kohm, 100 V, 9 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 220K Ohm 2% 1.25W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 220K Ohm 2% 1.25W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
