22 ±1 欧姆

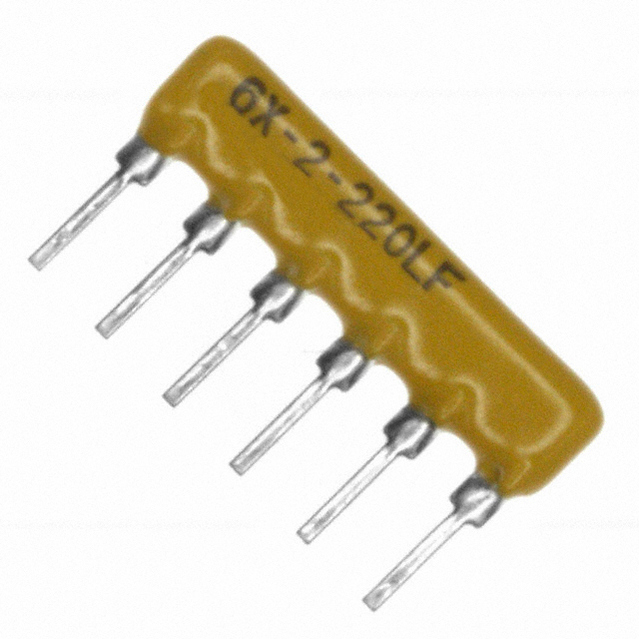

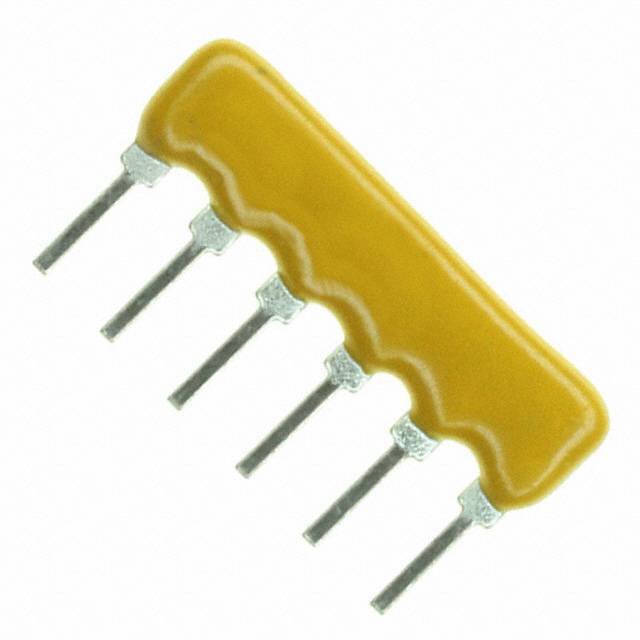

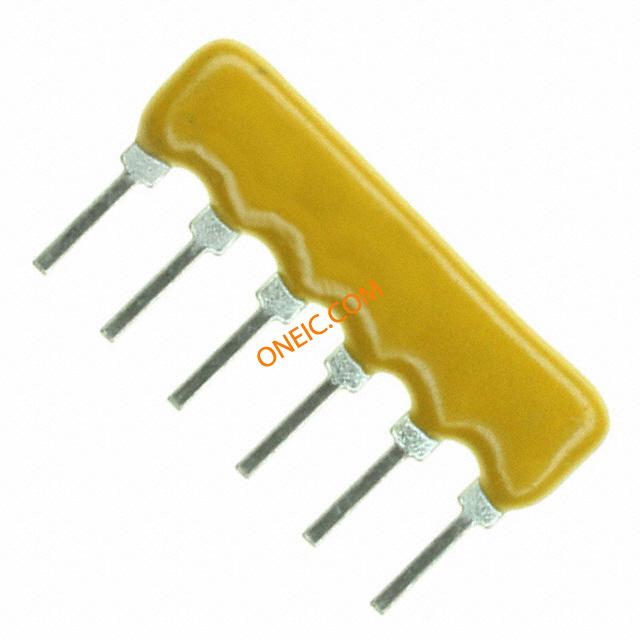

Create more space in your circuit design by using this resistor array developed by Bourns that packs multiple resistors into one IC chip. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. This product"s 3 resistors have a value of 22 Ohm. Its temperature coefficient is ±250 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 2.54 mm. The 4606X-102-220LF part has a pin termination style. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep. This device is made with thick film technology.
触点数 6
额定电压DC 100 V
容差 2 %
额定功率 0.75 W
针脚数 6
电阻 22 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 6
封装 SIP-6

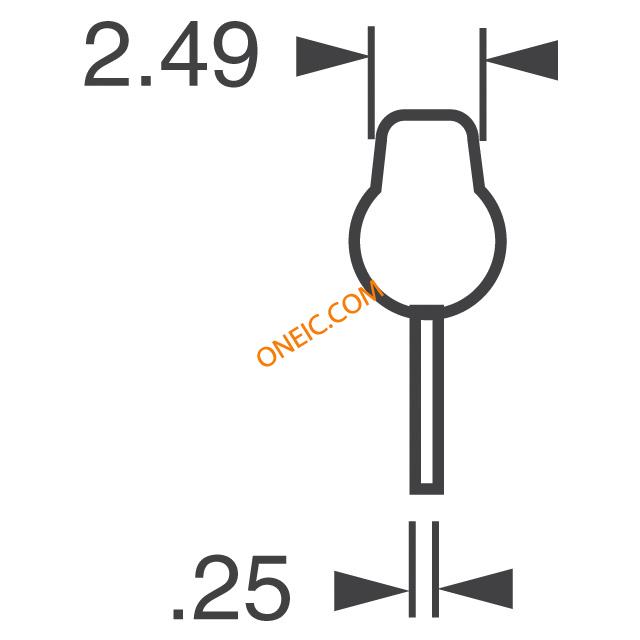

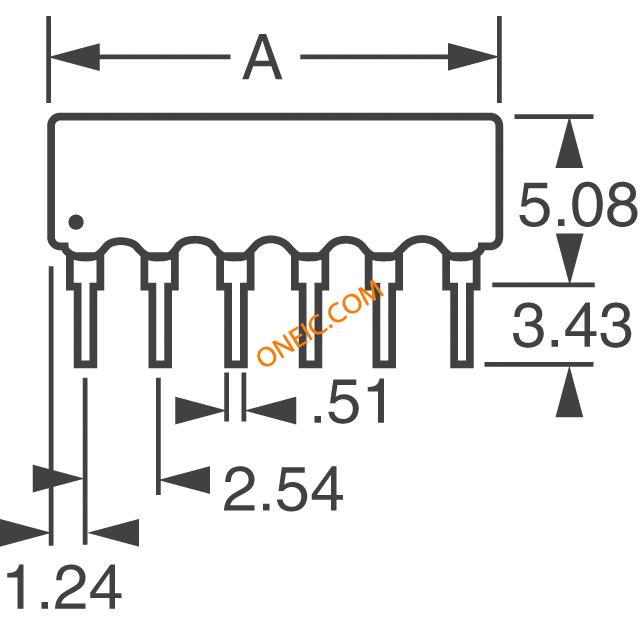

长度 15.19 mm
宽度 2.49 mm
高度 5.08 mm
封装 SIP-6
厚度 2.49 mm
工作温度 -55℃ ~ 125℃
温度系数 ±250 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210050
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
4606X-102-220LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
4606X-102-220 伯恩斯 | 完全替代 | 4606X-102-220LF和4606X-102-220的区别 |
4606X-AP2-220LF 伯恩斯 | 完全替代 | 4606X-102-220LF和4606X-AP2-220LF的区别 |
4606X-AP2-220 伯恩斯 | 类似代替 | 4606X-102-220LF和4606X-AP2-220的区别 |
