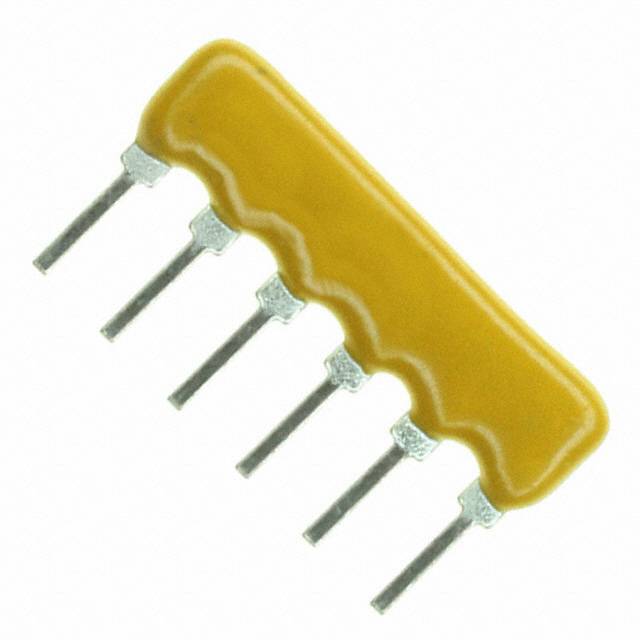

Res Thick Film NET 560Ω 2% 0.75W3/4W 100ppm/℃ BUS Conformal 6Pin SIP Pin Thru-Hole Bulk
Pack multiple resistors into a single chip with this resistor array from Bourns. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.2 1/5 W. This product"s 5 resistors have a value of 560 Ohm. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This device is made with thick film technology. The 4606X-101-561LF part has a pin termination style. This product is 15.19 mm long, 5.08 mm tall and 2.49 mm deep. It has a tolerance of 2%. This product"s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C.
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
电阻 560 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 6
封装 SIP-6
长度 15.19 mm
宽度 2.49 mm
高度 5.08 mm
封装 SIP-6
厚度 2.49 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210050
