4310R-101-822LF

Res Thick Film NET 8.2KΩ 2% 1.25W ±100ppm/℃ BUS Molded 10Pin SIP Pin Thru-Hole

8.2k Ohm ±2% 200mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 10-SIP

立创商城:
8.2kΩ ±2%

得捷:
RES ARRAY 9 RES 8.2K OHM 10SIP

艾睿:

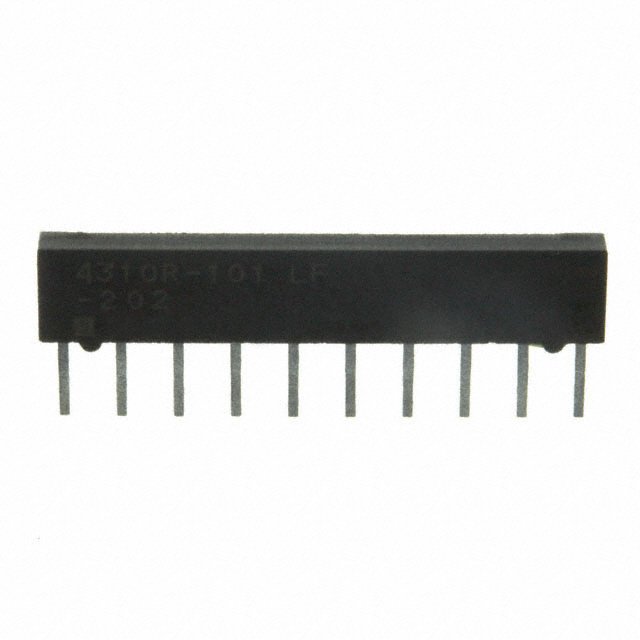

Use this 4310R-101-822LF resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1.25 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 9 resistors have a value of 8.2K Ohm. It has 10 terminals. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This product is 24.99 mm long, 4.95 mm tall and 2.16 mm deep. This device is made with thick film technology. The 4310R-101-822LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C.

Allied Electronics:
RNET - THK FILM MOLD SIP

安富利:
Res Thick Film NET 8.2K Ohm 2% 1.25W ±100ppm/°C BUS Molded 10-Pin SIP Pin Thru-Hole

Chip1Stop:
Res Thick Film NET 8.2K Ohm 2% 1.25W ±100ppm/℃ BUS Molded 10-Pin SIP Pin Thru-Hole

Verical:
Res Thick Film NET 8.2K Ohm 2% 1.25W ±100ppm/C BUS Molded 10-Pin SIP Pin Thru-Hole

Newark:
# BOURNS  4310R-101-822LF  Fixed Network Resistor, Bussed, 8.2 kohm, 100 V, 9 Elements, Bussed, SIP, 200 mW

Electro Sonic:
Res Thick Film NET 8.2K Ohm 2% 1.25W ±100ppm/°C BUS Molded 10-Pin SIP Pin Thru-Hole
