Res Thick Film NET 220Ω 2% 2W ±100ppm/℃ BUS Conformal 10Pin SIP Pin Thru-Hole Bulk
220 Ohm ±2% 300mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 10-SIP
得捷:
RES ARRAY 9 RES 220 OHM 10SIP
立创商城:
220Ω ±2%
艾睿:

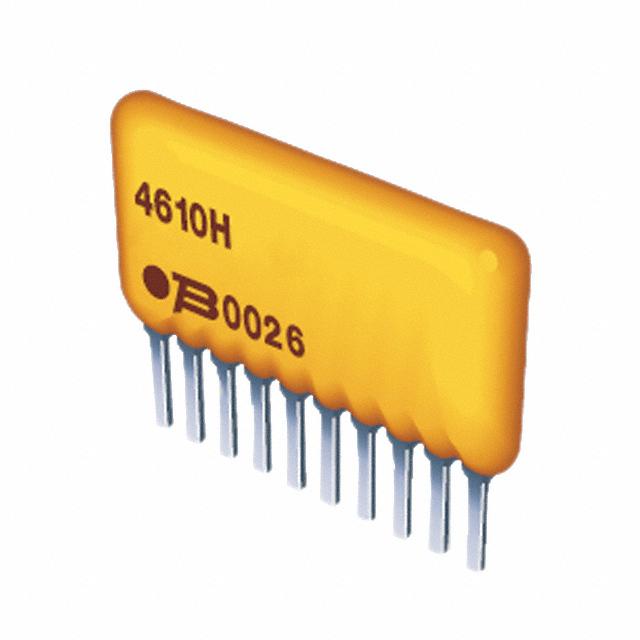

Pack multiple resistors into a single chip with this 4610H-101-221LF resistor array from Bourns. This dependable part has a power rating of 2 W and a power rating per resistor of 0.3 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 9 resistors have a value of 220 Ohm. It has 10 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 25.35 mm long, 8.89 mm tall and 2.49 mm deep. The 4610H-101-221LF part has a pin termination style. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm.
安富利:
Res Thick Film NET 220 Ohm 2% 2W ±100ppm/°C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 220 Ohm 2% 2W ±100ppm/℃ BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 220 Ohm 2% 2W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
