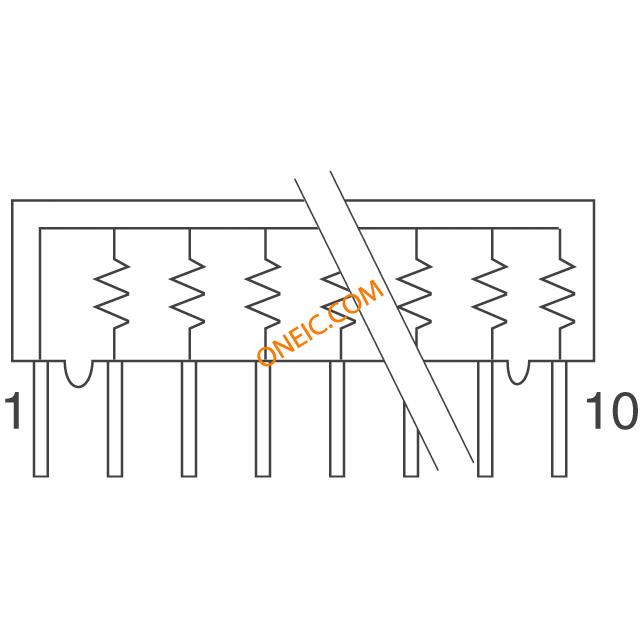

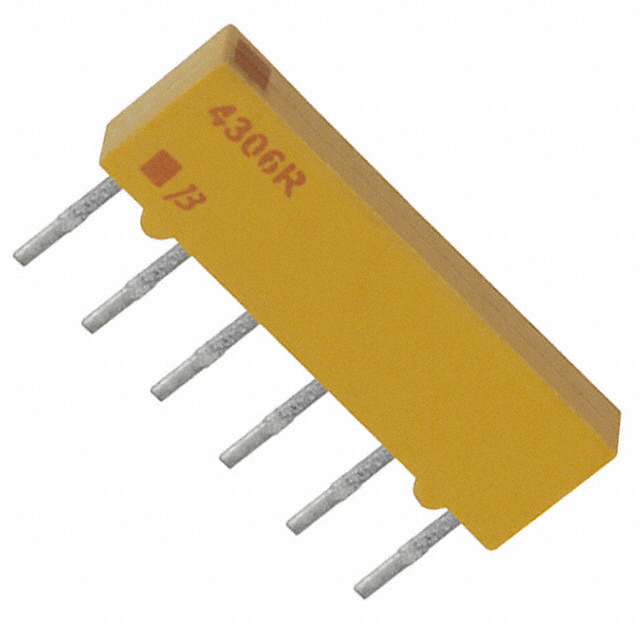

Res Thick Film NET 20KΩ 2% 0.75W3/4W 100ppm/℃ BUS Molded 6Pin SIP Pin Thru-Hole
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
立创商城:
20kΩ ±2%
得捷:
RES ARRAY 5 RES 20K OHM 6SIP
艾睿:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Allied Electronics:
4306R-101-203
Chip1Stop:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W 100ppm/ C BUS Molded 6-Pin SIP Pin Thru-Hole
Verical:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/C BUS Molded 6-Pin SIP Pin Thru-Hole
MASTER:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Online Components:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 20K Ohm 2% 0.75W3/4W ±100ppm/°C BUS Molded 6-Pin SIP Pin Thru-Hole
触点数 6
额定电压DC 100 V
容差 ±2 %
额定功率 0.75 W
针脚数 6
电阻 20 KΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 6
封装 SIP-6

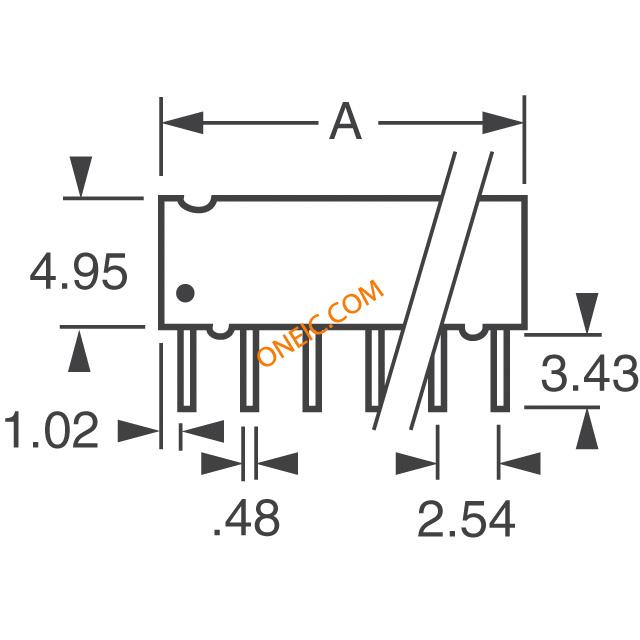

长度 14.83 mm

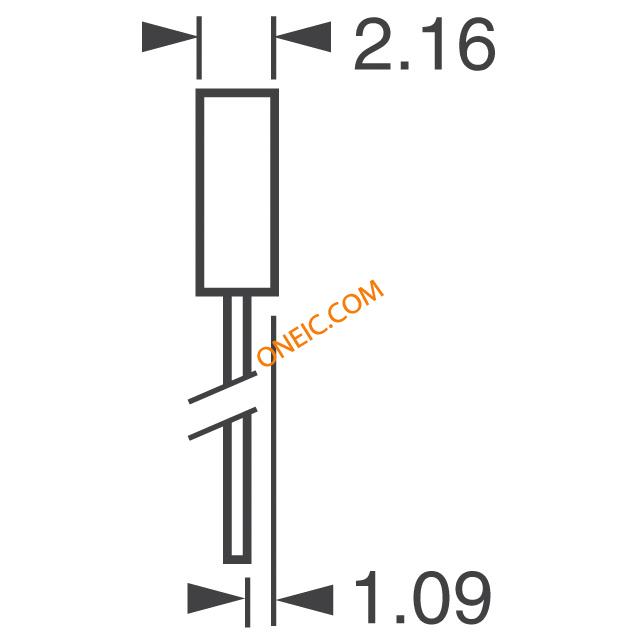

宽度 2.16 mm
高度 4.95 mm
封装 SIP-6
厚度 2.16 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Tube
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210050
